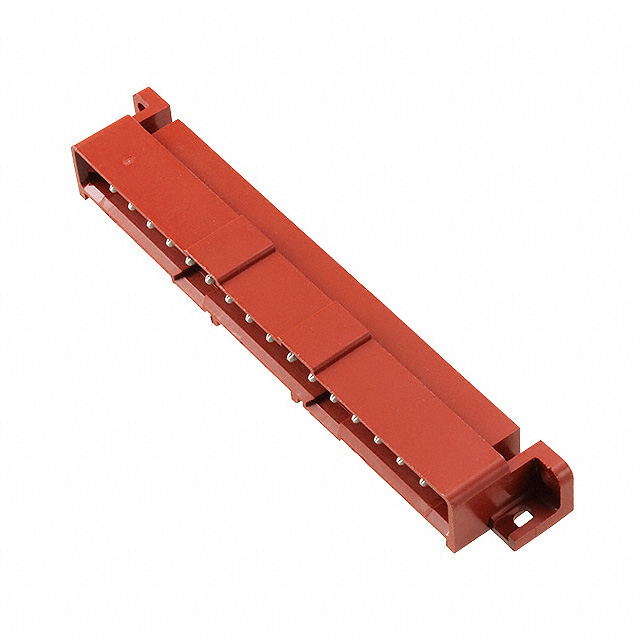

207544-1
Or copy the link below:
- Mfr.Part #
- 207544-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 16POS 5MM
- Stock
- 15
- In Stock ：
- 15
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Operating Temperature :
- -55°C~130°C
- Contact Current Rating :
- 7.5A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Pitch :
- 5mm
- Height :
- 12.7mm
- PCB Thickness :
- 1.6002mm
- Published :
- 2004
- Flammability Rating :
- UL94 V-0
- Radiation Hardening :
- No
- Feature :
- Mounting Flange
- Reliability :
- COMMERCIAL
- Width :
- 17.5mm
- Factory Lead Time :
- 17 Weeks
- Lead Free :
- Contains Lead
- Contact Mating Length :
- 5.0038mm
- Mount :
- Through Hole
- Depth :
- 17.5mm
- Contact Finish - Mating :
- Tin-Lead
- Fastening Type :
- Latch Holder
- Gender :
- Male
- Length :
- 102.64mm
- Number of Positions :
- 16
- RoHS Status :
- Non-RoHS Compliant
- Voltage - Rated :
- 600V
- DIN Conformance :
- No
- Max Voltage Rating (AC) :
- 600V
- Filter Feature :
- No
- Housing Material :
- Nylon
- IEC Conformance :
- No
- Contact Finish Thickness - Mating :
- 150.0μin 3.81μm
- VDE Tested :
- yes
- Packaging :
- Tube
- Insulation Height :
- 0.500 12.70mm
- Approval Agency :
- UL
- Contact Plating :
- Tin
- Contact Finish Thickness - Post :
- 150.0μin 3.81μm
- Current Rating :
- 14A
- Length - Tail :
- 4.8768mm
- Mounting Type :
- Through Hole, Right Angle
- Insulation Material :
- Polyamide (PA), Nylon
- Number of Positions Loaded :
- All
- Orientation :
- RIGHT ANGLE
- Contact Material :
- Brass
- MIL Conformance :
- No
- Contact Type :
- Male Pin
- ECCN Code :
- EAR99
- Contact Shape :
- Circular
- Connector Type :
- Header
- Series :
- Metrimate
- Applications :
- Automotive, General Purpose, Industrial
- Style :
- Board to Board or Cable
- Contact Length - Post :
- 0.192 4.88mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- HTS Code :
- 8536.69.40.40
- Insulation Color :
- Red
- Mixed Contacts :
- No
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.197 5.00mm
- Shrouding :
- Shrouded - 4 Wall
- ELV :
- Non-Compliant
- Body Breadth :
- 0.5 inch
- Number of Conductors :
- ONE
- Number of Rows :
- 1
- Datasheets
- 207544-1
207544-1 Documents
Metrimate Series 1-Row Header Solder Brass Tube Through Hole, Right Angle Tin-Lead Polyamide (PA), Nylon 16-Position Board to Board or Cable 0.500 12.70mm Height
207544-1 Overview
Packaging is in the form of Header.This device has a Through Hole, Right Angle mounting type.An orange Tube case is used to package the product.Specifically, it is one of the products in the Metrimate Series.There are a variety of possible applications for this device, including Automotive, General Purpose, Industrial.Several benefits come from the Mounting Flange feature.There is a mounting hole at Through Hole.Devices operate at -55°C~130°C operating temperatures.
207544-1 Features
Metrimate series
207544-1 Applications
There are a lot of TE Connectivity AMP Connectors
207544-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
