207524-2

Share

Or copy the link below:

Mfr.Part #
207524-2
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN HDR 6POS 0.197 TIN-LEAD PCB
Stock
48,085
In Stock :
48,085

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Receptacles, Female Sockets
Lead Free :
Contains Lead
Insulation Color :
Black, Red
Contact Material :
Phosphor Bronze
Current Rating :
14A
UL Flammability Code :
94V-0
Polarization Key :
POLARIZED HOUSING
PCB Contact Row Spacing :
5.0038 mm
Contact Finish Thickness - Mating :
150.0μin 3.81μm
Shell Material :
POLYETHYLENE
Mount :
Through Hole
Filter Feature :
No
Series :
Metrimate
Factory Lead Time :
20 Weeks
Contact Shape :
Circular
Insulation Material :
Polyamide (PA), Nylon
Contact Finish Thickness - Post :
150.0μin 3.81μm
Flammability Rating :
UL94 V-0
Row Spacing - Mating :
0.197 (5.00mm)
Housing Material :
Nylon
Pbfree Code :
No
Plating Thickness :
3.81μm
Depth :
27.69mm
Number of Ports :
1
Published :
2004
Contact Finish - Mating :
Tin-Lead
Option :
GENERAL PURPOSE
IEC Conformance :
No
Width :
15.49mm
Number of Positions :
6
Contact Length - Post :
0.181 4.60mm
PCB Thickness :
1.6002mm
Color :
Red
Packaging :
Bulk
Mixed Contacts :
No
Number of Rows :
2
Radiation Hardening :
No
Termination :
Solder
Number of Positions Loaded :
All
DIN Conformance :
No
Fastening Type :
Latch Holder
Lead Pitch :
5mm
Gender :
FEMALE
Length - Tail :
4.5974mm
Length :
27.69mm
Reliability :
COMMERCIAL
Insulation Height :
0.565 14.35mm
Material Flammability Rating :
UL94 V-0
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Empty Shell :
No
Contact Current Rating :
7.5A
Contact Type :
Female Socket
Style :
Board to Cable/Wire
RoHS Status :
Non-RoHS Compliant
ELV :
Non-Compliant
Connector Type :
Header
Orientation :
Vertical
MIL Conformance :
No
Mounting Type :
Through Hole
Height :
14.35mm
Approval Agency :
UL
Operating Temperature :
-55°C~130°C
Terminal Pitch :
5.0038mm
Number Of PCB Rows :
2
Max Voltage Rating (AC) :
600V
Pitch - Mating :
0.197 5.00mm
VDE Tested :
yes
Number of Conductors :
ONE
Contact Plating :
Tin
Introducing Headers, Receptacles, Female Sockets TE Connectivity AMP Connectors 207524-2 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Operating Temperature:-55°C~130°C, 207524-2 pinout, 207524-2 datasheet PDF, 207524-2 amp .Beyond Headers, Receptacles, Female Sockets TE Connectivity AMP Connectors 207524-2 ,we also offer 5031590300, PPPC022LFBN-RC, PPTC071LFBN-RC, Our vast inventory has you covered. Contact us now for immediate solutions.

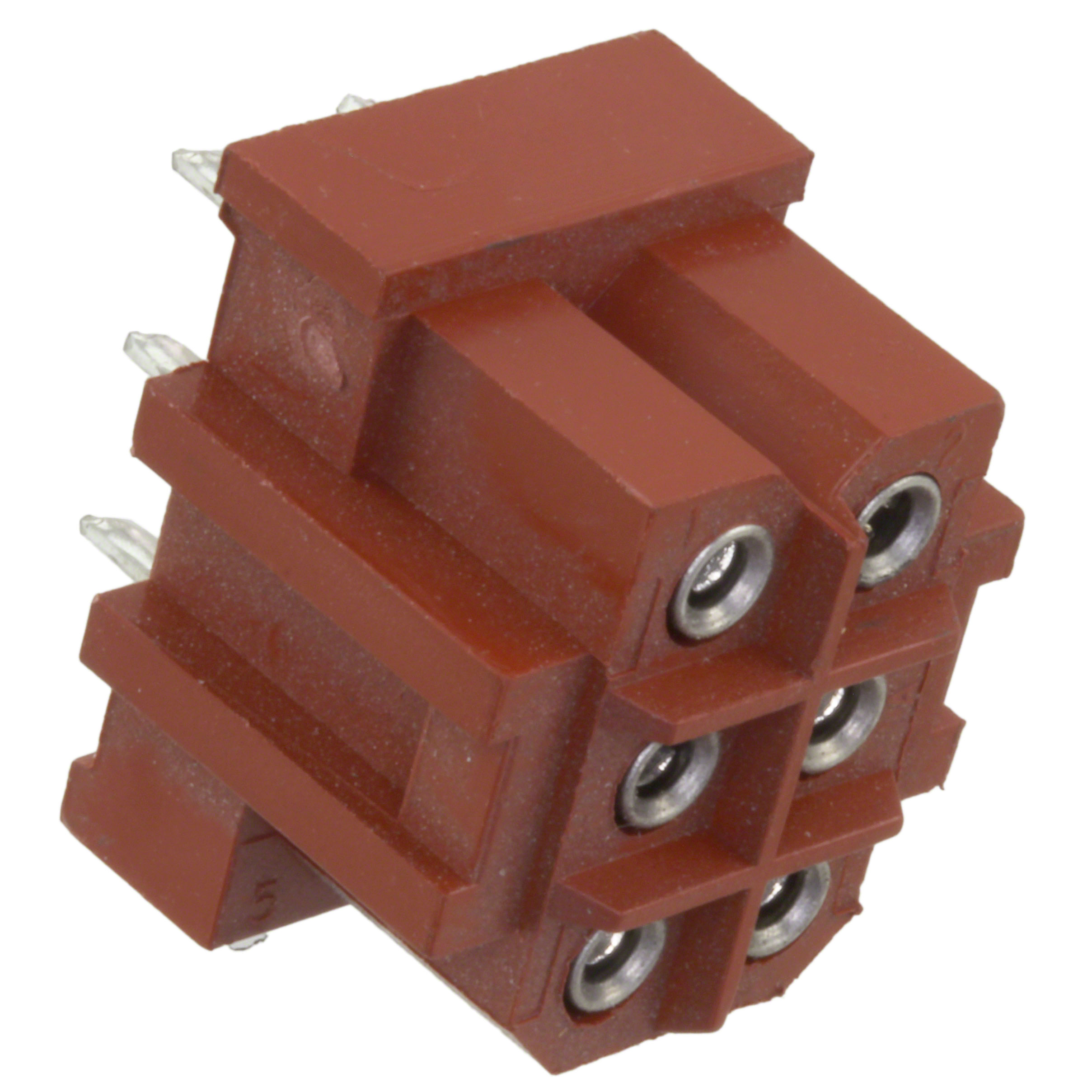

TE Connectivity AMP Connectors 207524-2


2 Rows Header Solder Phosphor Bronze Through Hole Bulk Tin-Lead Polyamide (PA), Nylon 6 Positions Female Socket

207524-2 Overview


Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the Metrimate Series, it belongs to the range of products of that series.There are 1 ports available for a variety of tasks to be performed on it.Through Hole represents the mounting point for the part.-55°C~130°C Operating Temperature is the default operating temperature for the device.

207524-2 Features


Metrimate series


207524-2 Applications


There are a lot of TE Connectivity AMP Connectors
207524-2 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
