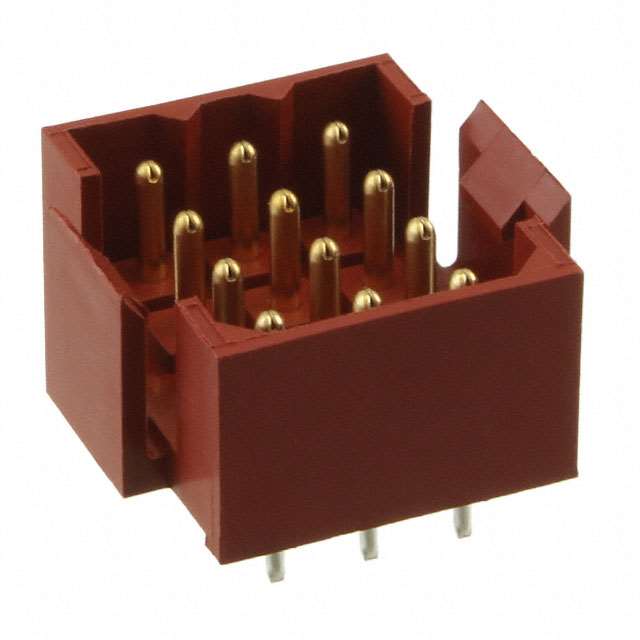

207120-4

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

ECCN Code :

EAR99

Connector Type :

Header, Pin, Receptacle

Contact Style :

SQ PIN-SKT

Durability :

250 Cycles

Mount :

Through Hole

Length - Tail :

4.5974mm

Number of Conductors :

ONE

Fastening Type :

Latch

Reliability :

COMMERCIAL

JESD-609 Code :

e0

Filter Feature :

No

Pitch :

5.0038mm

Mating Information :

207017-1

Body Breadth :

0.954 inch

Body/Shell Style :

PLUG

Current Rating :

14A

Flammability Rating :

UL94 V-0

Row Spacing - Mating :

5.0038 mm

MIL Conformance :

No

Polarization Key :

POLARIZED HOUSING

Empty Shell :

No

Dielectric Withstanding Voltage :

2000VAC V

UL Flammability Code :

94V-0

Length :

32.51mm

VDE Tested :

yes

Max Voltage Rating (DC) :

600.6kV

ELV :

Non-Compliant

PCB Mounting Orientation :

Vertical

Max Voltage Rating (AC) :

600V

Factory Lead Time :

12 Weeks

Lead Pitch :

5mm

Termination :

Solder

Voltage - Rated :

600V

Contact Rating (Current) :

7.5A

Number of Rows :

3

Contact Material :

Brass

Insulation Resistance :

100000000Ohm

Radiation Hardening :

No

Insertion Force-Max :

4.8928 N

PCB Thickness :

1.6002mm

Additional Feature :

Pin Header

Pbfree Code :

No

Option :

GENERAL PURPOSE

Withdrawl Force-Min :

.278 N

Lead Free :

Contains Lead

Mixed Contacts :

No

RoHS Status :

RoHS Compliant

Number of Contacts :

12

Housing Material :

Nylon

Approval Agency :

UL

Depth :

24.23mm

Contact Plating :

Gold

Max Operating Temperature :

130°C

Height :

11.79mm

Color :

Red

Contact Gender :

Male

Min Operating Temperature :

-55°C

Shell Material :

Polyamide

Published :

2006

IEC Conformance :

No

DIN Conformance :

No

Number Of PCB Rows :

3

Width :

24.23mm
