207120-2

Share

Or copy the link below:

Mfr.Part #
207120-2
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN HEADER VERT 12POS 5MM
Stock
11,481
In Stock :
11,481

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Headers, Male Pins
Height :
11.79mm
Contact Length - Post :
0.181 4.60mm
Orientation :
Vertical
Length :
32.51mm
Number Of PCB Rows :
3
Radiation Hardening :
No
Published :
2004
Approval Agency :
UL
Number of Positions Loaded :
All
Connector Type :
Header
Mixed Contacts :
No
Filter Feature :
No
PCB Thickness :
1.6002mm
Fastening Type :
Latch Lock
Pbfree Code :
No
Housing Material :
Nylon
Current Rating :
14A
Number of Positions :
12
Pitch - Mating :
0.197 5.00mm
Number of Rows :
3
Shrouding :
Shrouded - 4 Wall
Depth :
32.51mm
Color :
Red
Mounting Type :
Through Hole
Contact Type :
Male Pin
IEC Conformance :
No
Style :
Board to Board or Cable
Contact Material :
Brass
Length - Tail :
4.5974mm
Width :
24.23mm
MIL Conformance :
No
Operating Temperature :
-55°C~130°C
Insulation Height :
0.464 11.79mm
Contact Shape :
Circular
Polarization Key :
POLARIZED HOUSING
Dielectric Withstanding Voltage :
2000VAC V
Insulation Material :
Polyamide (PA), Nylon
ELV :
Non-Compliant
ECCN Code :
EAR99
Reliability :
COMMERCIAL
Termination :
Solder
Packaging :
Tray
Number of Ports :
1
Max Voltage Rating (DC) :
600.6kV
Empty Shell :
No
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Voltage - Rated :
600V
Contact Finish - Mating :
Tin
RoHS Status :
Non-RoHS Compliant
Insulation Color :
Black, Red
Flammability Rating :
UL94 V-0
Material Flammability Rating :
UL94 V-0
Contact Finish Thickness - Post :
150.0μin 3.81μm
Factory Lead Time :
17 Weeks
Mount :
Through Hole
Contact Finish Thickness - Mating :
150.0μin 3.81μm
Row Spacing - Mating :
0.197 (5.00mm)
Max Voltage Rating (AC) :
600V
VDE Tested :
yes
Body Breadth :
0.954 inch
Gender :
Male
DIN Conformance :
No
Contact Current Rating :
7.5A
Lead Pitch :
5mm
Insertion Force-Max :
4.8928 N
Applications :
Automotive, General Purpose, Industrial
Series :
Metrimate
Durability :
250 Cycles
Number of Conductors :
ONE
Withdrawl Force-Min :
.278 N
Lead Free :
Contains Lead
UL Flammability Code :
94V-0
Introducing Headers, Male Pins TE Connectivity AMP Connectors 207120-2 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Operating Temperature:-55°C~130°C, 207120-2 pinout, 207120-2 datasheet PDF, 207120-2 amp .Beyond Headers, Male Pins TE Connectivity AMP Connectors 207120-2 ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

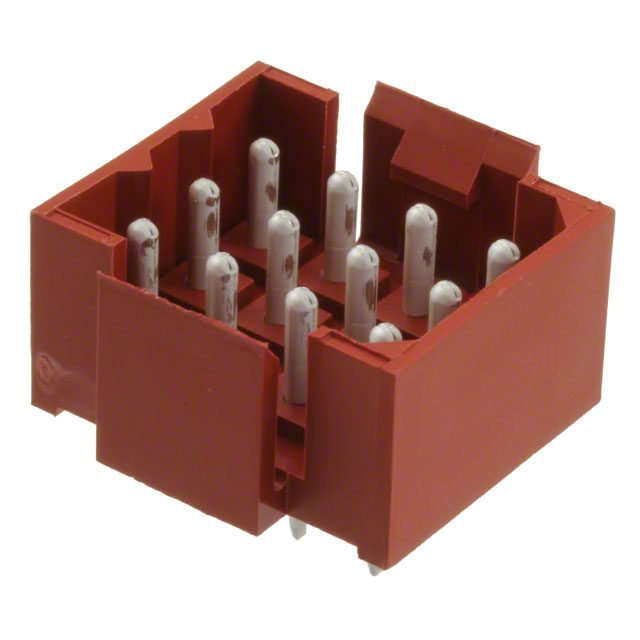

TE Connectivity AMP Connectors 207120-2


Metrimate Series 3-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA), Nylon 12-Position Board to Board or Cable 0.464 11.79mm Height

207120-2 Overview


Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the Metrimate Series, it can be found in this category.A variety of tasks can be managed via its 1 ports.A possible application of the device would be Automotive, General Purpose, Industrial.In this case, Through Hole mounts the part.The device is operating at -55°C~130°C Operating Temperature.

207120-2 Features


Metrimate series


207120-2 Applications


There are a lot of TE Connectivity AMP Connectors
207120-2 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
