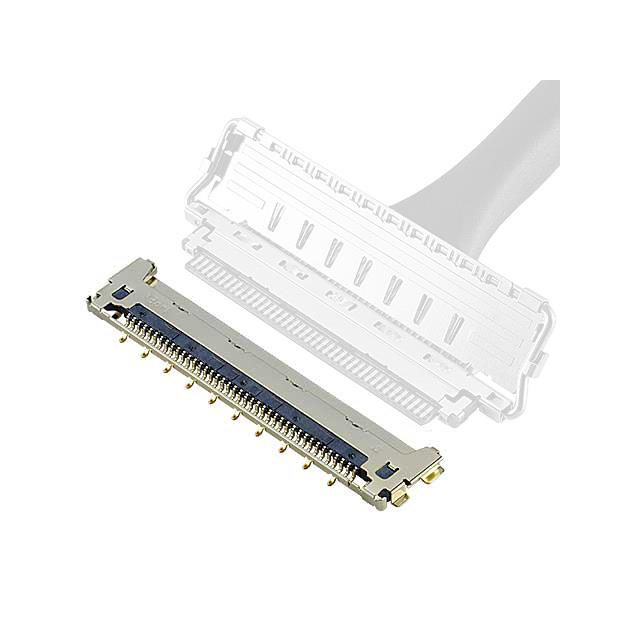

20682-040E-02
Or copy the link below:
- Mfr.Part #
- 20682-040E-02
- Manufacturer
- I-PEX
- Package / Case
- Datasheet
- Download
- Description
- CABLINE-CA II RECEPTACLE 40P
- Stock
- 5,540
- In Stock ：
- 5,540
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- I-PEX
- Product Category :
- Headers, Receptacles, Female Sockets
- Option :
- GENERAL PURPOSE
- PCB Contact Pattern :
- RECTANGULAR
- Body/Shell Style :
- Receptacle
- Insertion Force-Max :
- 19.4 N
- Withdrawl Force-Min :
- 4 N
- Reference Standard :
- UL
- Total Number of Contacts :
- 40
- Mounting Type :
- BOARD
- Number Of PCB Rows :
- 1
- Body Breadth :
- 0.03 inch
- Plating Thickness :
- 39u inch
- Contact Gender :
- FEMALE
- Contact Pattern :
- RECTANGULAR
- Connector Type :
- FFC/FPC CONNECTOR
- Dielectric Withstanding Voltage :
- 250VAC V
- Terminal Pitch :
- 0.4 mm
- Mounting Style :
- Straight
- Reach Compliance Code :
- Unknown
- Termination Type :
- Surface Mount
- Insulator Color :
- Black
- Contact Design :
- PREASSEM CONN
- Filter Feature :
- No
- Contact Style :
- BELLOWED TYPE
- Mounting Option 1 :
- LOCKING
- UL Flammability Code :
- 94V-0
- Rated Current (Signal) :
- 1 A
- Mating Contact Pitch :
- 0.016 inch
- Insulation Resistance :
- 1000000000 Ω
- Durability :
- 30 Cycles
- Mixed Contacts :
- No
- Body Depth :
- 0.186 inch
- Datasheets
- 20682-040E-02
