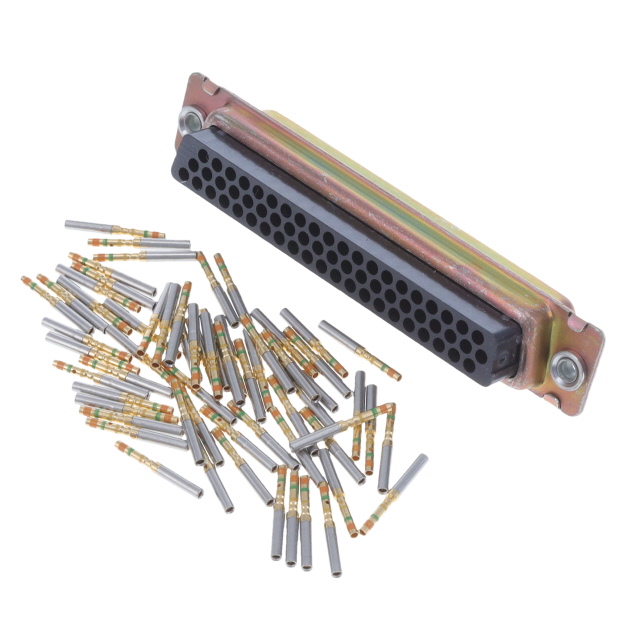

204542-2
Or copy the link below:
- Mfr.Part #
- 204542-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB HD RCPT 62P PNL MNT
- Stock
- 49
- In Stock ：
- 49
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- D-Sub Connector Assemblies
- Current Rating :
- 5A
- Mount :
- CABLE
- Series :
- AMPLIMITE HD-22
- Contact Design :
- PREASSEM CONN
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Flange Feature :
- Housing/Shell (Unthreaded)
- Reliability :
- COMMERCIAL
- Shell Material, Finish :
- Steel, Cadmium Plated
- Housing Material :
- Steel
- Depth :
- 12.92mm
- Plating :
- Cadmium
- Option :
- GENERAL PURPOSE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- MIL Conformance :
- yes
- Filter Feature :
- No
- Empty Shell :
- No
- Connector Type :
- Receptacle, Female Sockets
- Length :
- 69.69mm
- IEC Conformance :
- No
- Orientation :
- Straight
- Number of Ports :
- 1
- Contact Material :
- COPPER ALLOY
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- ECCN Code :
- EAR99
- Gender :
- FEMALE
- Hole Diameter :
- 3.048 mm
- ELV :
- Non-Compliant
- Total Number of Contacts :
- 62
- Mixed Contacts :
- No
- Sealable :
- No
- Contact Type :
- Signal
- Mounting Type :
- Panel Mount
- Lead Free :
- Not Applicable
- Body Breadth :
- 0.509 inch
- DIN Conformance :
- No
- Number of Rows :
- 3
- Shell Size, Connector Layout :
- 4 DC C High Density
- Operating Temperature (Min) :
- -50°C
- Number of Positions :
- 62
- Published :
- 2005
- RoHS Status :
- Non-RoHS Compliant
- Factory Lead Time :
- 13 Weeks
- Termination :
- Crimp
- Contact Finish :
- Gold
- Connector Style :
- D-Sub, High Density
- Datasheets
- 204542-2
AMPLIMITE HD-22 Series D-Sub, High Density Receptacle, Female Sockets 62-Position Female Signal Crimp 4 DC C High Density Panel Mount Copper Alloy Gold Steel, Cadmium Plated
204542-2 Overview
A Receptacle, Female Sockets package is included with it.Panel Mount indicates that the device is mounted.The product is a part of the AMPLIMITE HD-22 Series.With 1 ports, it is capable of managing a wide range of tasks.By Cable, the part is mounted.
204542-2 Features
AMPLIMITE HD-22 series
204542-2 Applications
There are a lot of TE Connectivity AMP Connectors
204542-2 D-Sub Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
