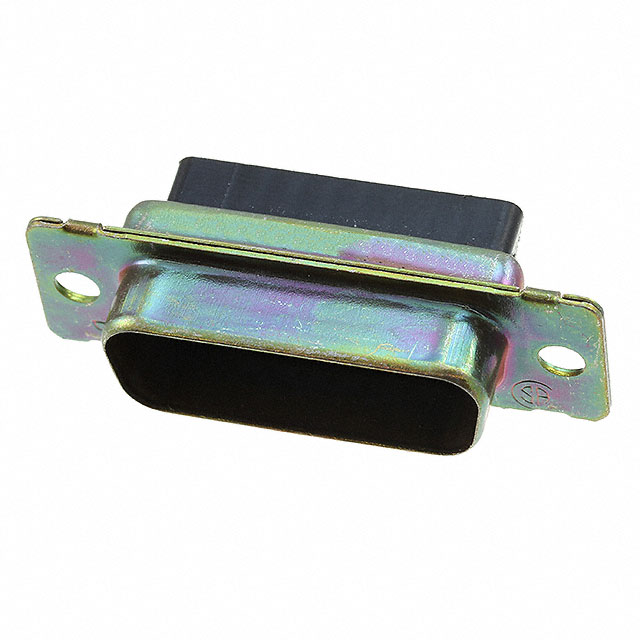

204503-1
Or copy the link below:
- Mfr.Part #
- 204503-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN D-SUB HD HOUSING PLUG 26POS
- Stock
- 46
- In Stock ：
- 46
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub, D-Shaped Connector Housings
- IEC Conformance :
- No
- Number of Ports :
- 1
- DIN Conformance :
- No
- Total Number of Contacts :
- 26
- Mounting Type :
- Free Hanging (In-Line)
- Mount :
- CABLE
- Filter Feature :
- No
- Contact Type :
- Signal
- Shell Size, Connector Layout :
- 2 DA A High Density
- MIL Conformance :
- yes
- Published :
- 2009
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 90
- Gender :
- Male
- Depth :
- 16.26mm
- Orientation :
- Straight
- Factory Lead Time :
- 10 Weeks
- Contact Style :
- Crimp
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Sealable :
- No
- Flange Feature :
- Housing/Shell (Unthreaded)
- Option :
- GENERAL PURPOSE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shell Material, Finish :
- Steel, Cadmium Plated
- Note :
- Contacts Not Included
- Mixed Contacts :
- No
- Number of Rows :
- 3
- Housing Material :
- Polyphenylene
- Number of Positions :
- 26
- Hole Diameter :
- 3.048 mm
- Packaging :
- Bulk
- Empty Shell :
- yes
- Connector Type :
- Plug for Male Contacts
- Package / Case :
- Metal
- Plating :
- Cadmium
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Width :
- 9.525mm
- Shell Material :
- Steel
- Length :
- 39.14mm
- Current Rating :
- 5A
- Lead Free :
- Contains Lead
- ELV :
- Non-Compliant
- Connector Style :
- D-Sub, High Density
- RoHS Status :
- Non-RoHS Compliant
- Datasheets
- 204503-1
204503-1 datasheet pdf and D-Sub, D-Shaped Connectors - Housings product details from TE Connectivity Aerospace, Defense and Marine stock available at Xinshop
