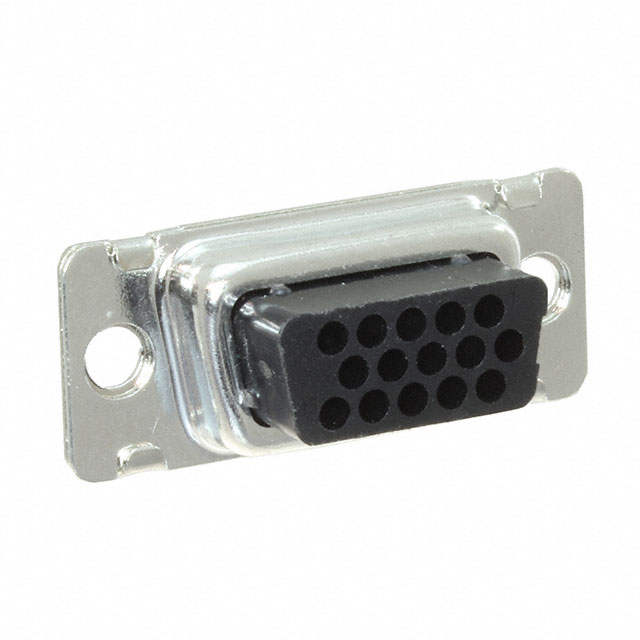

204501-5
Or copy the link below:
- Mfr.Part #
- 204501-5
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB HD HOUSING PLUG 15POS
- Stock
- 677
- In Stock ：
- 677
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub, D-Shaped Connector Housings
- Hole Diameter :
- 3.048 mm
- Empty Shell :
- yes
- MIL Conformance :
- yes
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Flange Feature :
- Housing/Shell (Unthreaded)
- Connector Style :
- D-Sub, High Density
- Total Number of Contacts :
- 15
- Contact Design :
- PREASSEM CONN
- Shell Size, Connector Layout :
- 1 DE E High Density
- Length :
- 30.81mm
- Mounting Type :
- Free Hanging (In-Line)
- Connector Type :
- Plug for Male Contacts
- Reference Standard :
- UL, CSA
- Filter Feature :
- No
- Option :
- GENERAL PURPOSE
- Contact Style :
- Crimp
- Number of Positions :
- 15
- Shell Material, Finish :
- Steel, Tin Plated
- Current Rating :
- 5A
- Number of Rows :
- 3
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- ELV :
- Compliant
- Body Breadth :
- 0.494 inch
- Sealable :
- No
- Body Depth :
- 0.405 inch
- Shell Finish :
- Tin
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Steel
- Factory Lead Time :
- 10 Weeks
- Mount :
- Free Hanging
- Feature :
- Grounding Indents
- Note :
- Contacts Not Included
- DIN Conformance :
- No
- Mixed Contacts :
- No
- Lead Free :
- Lead Free
- Packaging :
- Bulk
- ECCN Code :
- EAR99
- Contact Type :
- Signal
- Published :
- 2015
- Plating :
- Copper, Tin
- Series :
- AMPLIMITE 90
- Orientation :
- Straight
- IEC Conformance :
- No
- Gender :
- Male
- Reliability :
- COMMERCIAL
- Datasheets
- 204501-5
