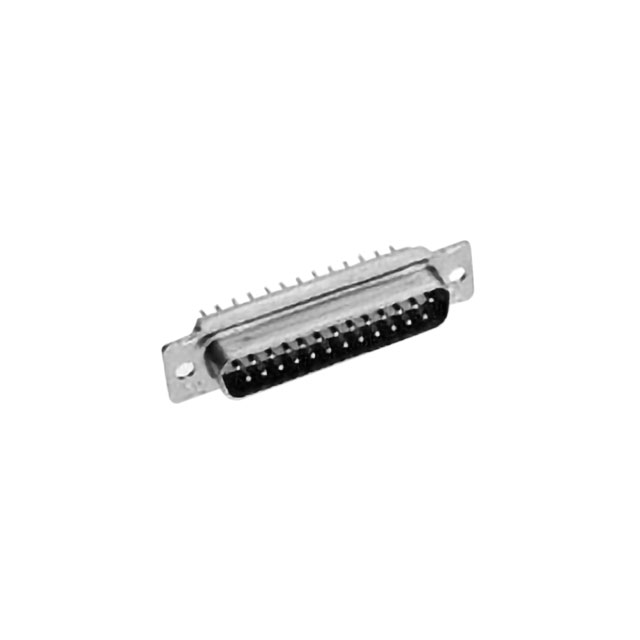

204540-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

D-Sub Connector Assemblies

Operating Temperature (Min) :

-50°C

DIN Conformance :

No

Gender :

FEMALE

Empty Shell :

No

Connector Style :

D-Sub, High Density

Series :

AMPLIMITE HD-22

Shell Material, Finish :

Steel, Cadmium Plated

Current Rating :

5A

Connector Type :

Receptacle, Female Sockets

Packaging :

Bulk

Termination :

Crimp

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Contact Design :

PREASSEM CONN

Lead Free :

Not Applicable

Contact Finish :

Gold

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Total Number of Contacts :

44

IEC Conformance :

No

Factory Lead Time :

10 Weeks

MIL Conformance :

yes

ELV :

Non-Compliant

Sealable :

No

Filter Feature :

No

Body Breadth :

0.509 inch

Operating Temperature (Max) :

125°C

Insulation Material :

Diallyl Phthalate

RoHS Status :

Non-RoHS Compliant

Mounting Type :

Panel Mount

Contact Type :

Signal

Number of Rows :

3

Published :

2008

ECCN Code :

EAR99

Shell Size, Connector Layout :

3 DB B High Density

Mixed Contacts :

No

Shell Material :

Steel

Body Depth :

0.424 inch

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Mounting Option 1 :

HOLE .112-.124

Plating :

Cadmium

Reliability :

COMMERCIAL

Option :

GENERAL PURPOSE

Number of Positions :

44

Contact Material :

COPPER ALLOY

Flange Feature :

Housing/Shell (Unthreaded)

Hole Diameter :

3.048 mm

Mounting Option 2 :

LOCKING
