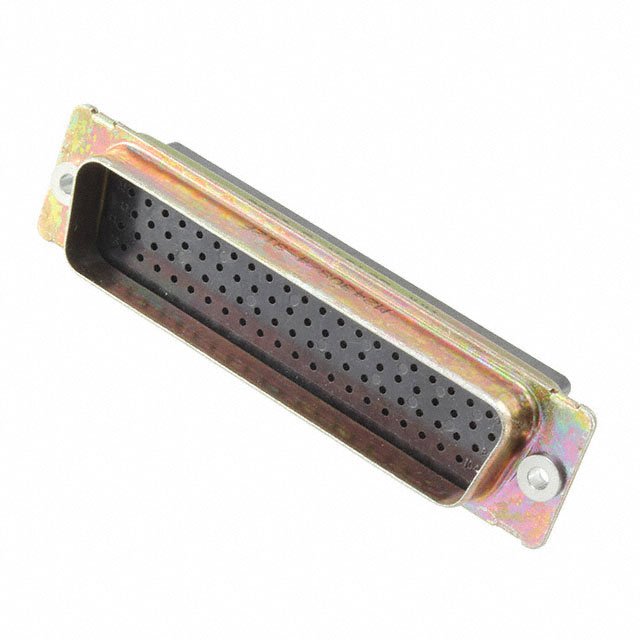

204535-1
Or copy the link below:
- Mfr.Part #
- 204535-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB HD HSG PLUG 104POS
- Stock
- 7,641
- In Stock ：
- 7,641
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub, D-Shaped Connector Housings
- Body Breadth :
- 0.668 inch
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Published :
- 2008
- Empty Shell :
- yes
- Sealable :
- No
- Gender :
- Male
- MIL Conformance :
- yes
- Factory Lead Time :
- 12 Weeks
- Housing Color :
- Blue
- Mixed Contacts :
- No
- Connector Type :
- Pin, Plug
- Additional Feature :
- STANDARD: MIL-DTL-24308
- IEC Conformance :
- No
- ELV :
- Non-Compliant
- Plating :
- Cadmium
- Orientation :
- Straight
- Contact Pattern :
- STAGGERED
- Shell Size :
- 6
- Option :
- GENERAL PURPOSE
- Contact Style :
- Crimp
- Housing Material :
- Steel
- RoHS Status :
- RoHS Compliant
- Number of Rows :
- 5
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Mounting Option 2 :
- LOCKING
- Mounting Option 1 :
- HOLE .087-.098
- Lead Free :
- Contains Lead
- Hole Diameter :
- 2.3114 mm
- ECCN Code :
- EAR99
- Circuit Application :
- Signal
- Length :
- 69.32mm
- Current Rating :
- 5A
- Mounting Type :
- CABLE AND PANEL
- Depth :
- 16.36mm
- Contact Design :
- PREASSEM CONN
- Filter Feature :
- No
- DIN Conformance :
- No
- Reliability :
- COMMERCIAL
- Number of Contacts :
- 104
- Datasheets
- 204535-1
204535-1 datasheet pdf and D-Sub, D-Shaped Connectors - Housings product details from TE Connectivity stock available at Xinshop
