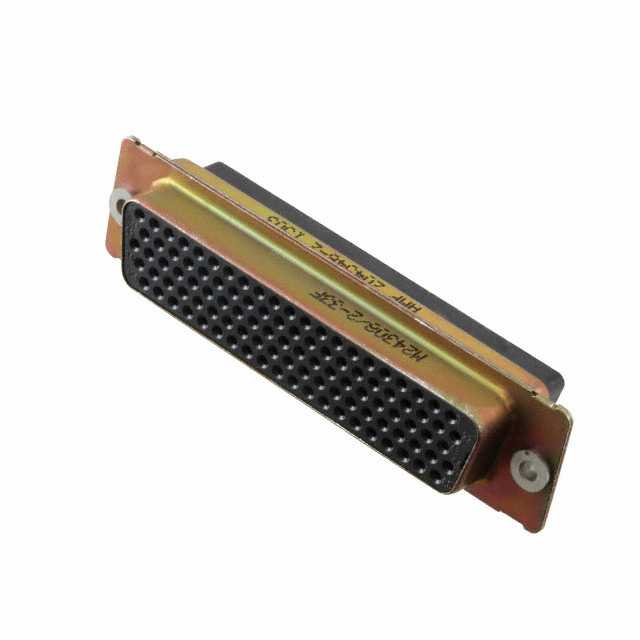

204534-1
Or copy the link below:
- Mfr.Part #
- 204534-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB HD HSG RCPT 104POS
- Stock
- 25
- In Stock ：
- 25
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub, D-Shaped Connector Housings
- Contact Type :
- Signal
- IEC Conformance :
- No
- Mixed Contacts :
- No
- Plating :
- Cadmium
- Sealable :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Flange Feature :
- Housing/Shell (Unthreaded)
- ELV :
- Non-Compliant
- Option :
- GENERAL PURPOSE
- Filter Feature :
- No
- Mount :
- Panel
- Housing Color :
- Black
- Mounting Type :
- Free Hanging (In-Line)
- Reliability :
- COMMERCIAL
- Shell Size, Connector Layout :
- 6
- DIN Conformance :
- No
- Number of Ports :
- 1
- Number of Positions :
- 104
- Orientation :
- Straight
- MIL Conformance :
- yes
- Connector Style :
- D-Sub, High Density
- Contact Style :
- Crimp
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Depth :
- 17.48mm
- Packaging :
- Bulk
- Contact Design :
- PREASSEM CONN
- Published :
- 2008
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Factory Lead Time :
- 12 Weeks
- Color :
- Blue
- Current Rating :
- 5A
- Total Number of Contacts :
- 104
- Hole Diameter :
- 2.24 mm
- Connector Type :
- Receptacle for Female Contacts
- Housing Material :
- Polyphenylene
- Empty Shell :
- yes
- Shell Material :
- Steel
- ECCN Code :
- EAR99
- Note :
- Contacts Not Included
- Lead Free :
- Contains Lead
- Shell Material, Finish :
- Steel, Cadmium Plated
- Length :
- 69.31mm
- Dielectric Material :
- Diallyl Phthalate (DAP)
- RoHS Status :
- Non-RoHS Compliant
- Gender :
- Receptacle
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 90
- Number of Rows :
- 5
- Additional Feature :
- STANDARD: MIL-DTL-24308, AMPLIMITE
- Datasheets
- 204534-1
