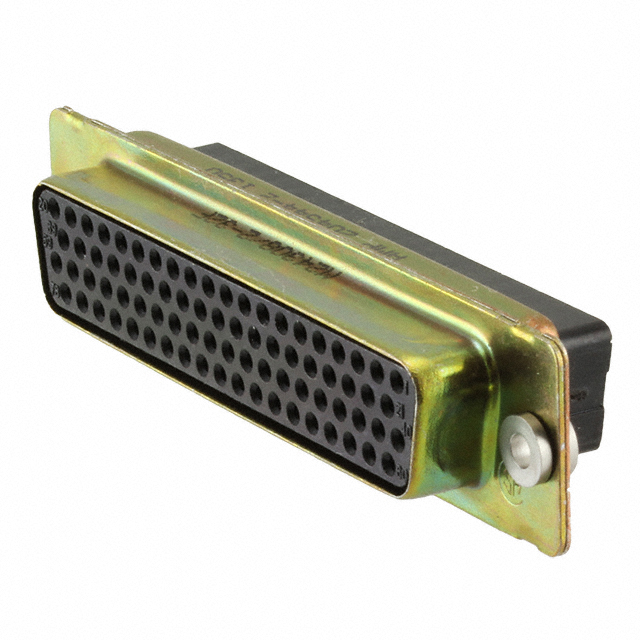

204532-1
Or copy the link below:
- Mfr.Part #
- 204532-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB HD HOUSING RCPT 78POS
- Stock
- 7,499
- In Stock ：
- 7,499
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub, D-Shaped Connector Housings
- Contact Type :
- Signal
- Mounting Type :
- Free Hanging (In-Line)
- Note :
- Contacts Not Included
- Published :
- 2008
- Factory Lead Time :
- 5 Weeks
- Number of Positions :
- 78
- MIL Conformance :
- yes
- Housing Color :
- Blue
- Contact Design :
- PREASSEM CONN
- ECCN Code :
- EAR99
- Connector Style :
- D-Sub, High Density
- Reliability :
- COMMERCIAL
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Shell Material :
- Steel
- DIN Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Radiation Hardening :
- No
- Option :
- GENERAL PURPOSE
- Connector Type :
- Receptacle for Female Contacts
- Body Breadth :
- 0.605 inch
- Hole Diameter :
- 3.05 mm
- Contact Style :
- Crimp
- Housing Material :
- Polyphenylene
- Packaging :
- Bulk
- Reference Standard :
- UL, CSA
- ELV :
- Non-Compliant
- Orientation :
- Straight
- RoHS Status :
- Non-RoHS Compliant
- Shell Material, Finish :
- Steel, Cadmium Plated
- Gender :
- FEMALE
- Lead Free :
- Contains Lead
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Mixed Contacts :
- No
- Filter Feature :
- No
- Shell Size, Connector Layout :
- 5 DD D High Density
- Total Number of Contacts :
- 78
- Flange Feature :
- Housing/Shell (Unthreaded)
- Number of Rows :
- 4
- Length :
- 66.93mm
- Empty Shell :
- yes
- IEC Conformance :
- No
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 90
- Plating :
- Cadmium
- Mount :
- Bushing
- Datasheets
- 204532-1
