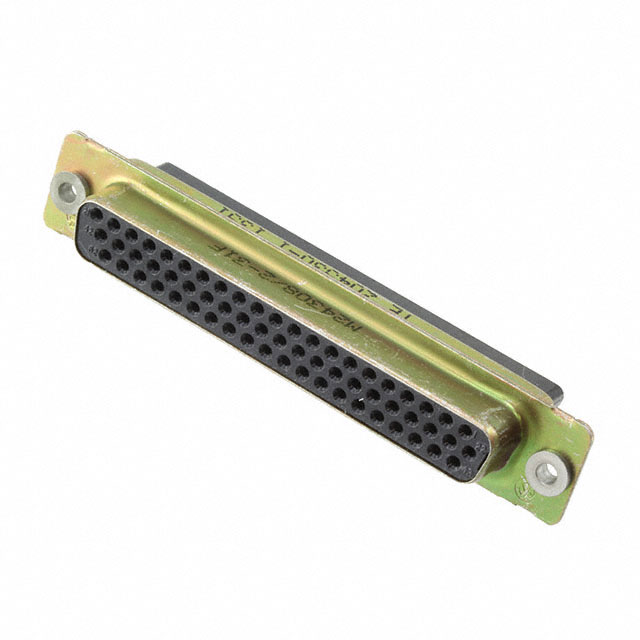

204530-1

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

D-Sub, D-Shaped Connector Housings

Published :

2011

IEC Conformance :

No

RoHS Status :

Non-RoHS Compliant

DIN Conformance :

No

Shell Size, Connector Layout :

4 DC C High Density

Housing Material :

Polyphenylene

ECCN Code :

EAR99

Contact Type :

Signal

ELV :

Non-Compliant

Lead Free :

Contains Lead

Note :

Contacts Not Included

Body Breadth :

0.494 inch

Series :

Military, MIL-DTL-24308, AMPLIMITE 90

Mounting Type :

Free Hanging (In-Line)

Shell Material, Finish :

Steel, Cadmium Plated

Mixed Contacts :

No

Current Rating :

5A

Gender :

Receptacle

Plating :

Cadmium

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Contact Design :

PREASSEM CONN

Hole Diameter :

2.24 mm

Reference Standard :

UL, CSA

Sealable :

No

Depth :

12.54mm

MIL Conformance :

yes

Number of Positions :

62

Connector Style :

D-Sub, High Density

Contact Style :

Crimp

Shell Material :

Steel

Connector Type :

Receptacle for Female Contacts

Reliability :

COMMERCIAL

Total Number of Contacts :

62

Packaging :

Bulk

Orientation :

Straight

Flange Feature :

Housing/Shell (Unthreaded)

Filter Feature :

No

Factory Lead Time :

13 Weeks

Housing Color :

Black

Mount :

CABLE

Empty Shell :

yes

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Length :

69.31mm

Option :

GENERAL PURPOSE

Number of Ports :

1

Number of Rows :

3
