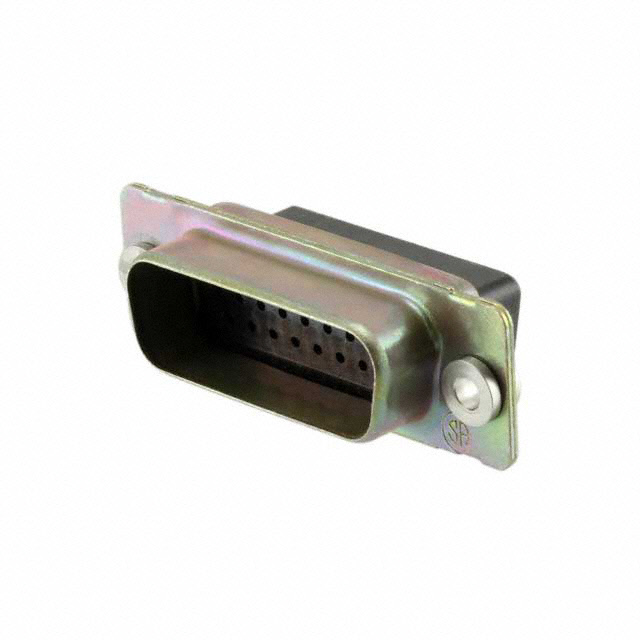

204527-1

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

D-Sub, D-Shaped Connector Housings

Housing Material :

Polyester

Connector Style :

D-Sub, High Density

Hole Diameter :

2.3114 mm

Orientation :

Straight

Shell Material, Finish :

Steel, Cadmium Plated

Housing Color :

Black

Flange Feature :

Housing/Shell (Unthreaded)

Contact Design :

PREASSEM CONN

Note :

Contacts Not Included

Total Number of Contacts :

26

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

IEC Conformance :

No

Depth :

16.26mm

Reference Standard :

UL, CSA

DIN Conformance :

No

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Plating :

Cadmium

MIL Conformance :

yes

Length :

39.14mm

RoHS Status :

Non-RoHS Compliant

Contact Style :

Crimp

Number of Positions :

26

Factory Lead Time :

6 Weeks

ECCN Code :

EAR99

Published :

2008

ELV :

Non-Compliant

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Empty Shell :

yes

Gender :

Male

Mixed Contacts :

No

Contact Type :

Signal

Filter Feature :

No

Reliability :

COMMERCIAL

Number of Rows :

3

Body Breadth :

0.494 inch

Shell Size, Connector Layout :

2 DA A High Density

Mount :

Panel

Sealable :

No

Current Rating :

5A

Mounting Type :

Free Hanging (In-Line)

Number of Ports :

1

Series :

Military, MIL-DTL-24308, AMPLIMITE 90

Packaging :

Bulk

Shell Material :

Steel

Connector Type :

Plug for Male Contacts
