204525-1
Or copy the link below:
- Mfr.Part #
- 204525-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description

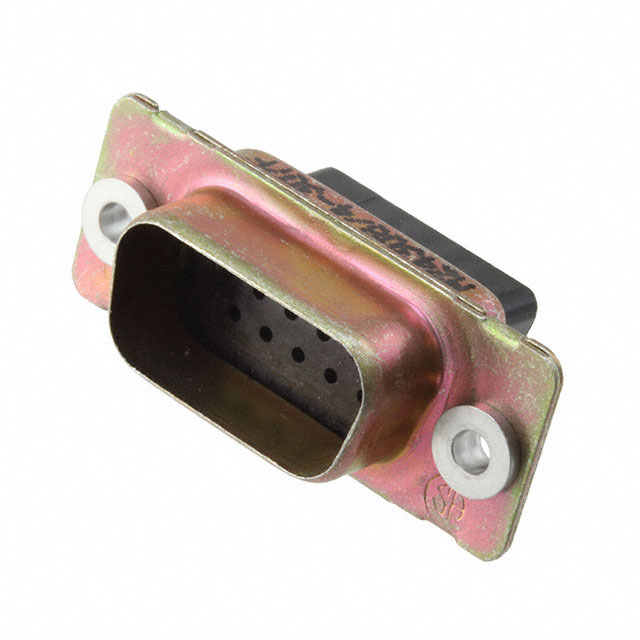

- CONN D-SUB HD HOUSING PLUG 15POS
- Stock
- 24,158
- In Stock ：
- 24,158
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub, D-Shaped Connector Housings
- Hole Diameter :
- 3.05 mm
- Housing Material :
- Polyester
- Plating :
- Cadmium
- Radiation Hardening :
- No
- Factory Lead Time :
- 3 Weeks
- Published :
- 2005
- Connector Style :
- D-Sub, High Density
- Sealable :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shell Material :
- Steel
- RoHS Status :
- Non-RoHS Compliant
- Number of Rows :
- 3
- Contact Type :
- Signal
- Circuit Application :
- Signal
- Depth :
- 16.26mm
- Connector Type :
- Plug for Male Contacts
- Shell Size, Connector Layout :
- 1 DE E High Density
- Number of Positions :
- 15
- Termination :
- Crimp
- Orientation :
- Straight
- Packaging :
- Bulk
- Length :
- 30.81mm
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 90
- Mounting Type :
- Free Hanging (In-Line)
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Note :
- Contacts Not Included
- Number of Contacts :
- 15
- ELV :
- Non-Compliant
- Gender :
- Male
- Lead Free :
- Contains Lead
- Mount :
- Bushing
- Housing Color :
- Black
- Flange Feature :
- Housing/Shell (Unthreaded)
- Shell Material, Finish :
- Steel, Cadmium Plated
- Contact Style :
- Crimp
- Current Rating :
- 5A
- Datasheets
- 204525-1
204525-1 datasheet pdf and D-Sub, D-Shaped Connectors - Housings product details from TE Connectivity Aerospace, Defense and Marine stock available at Xinshop
