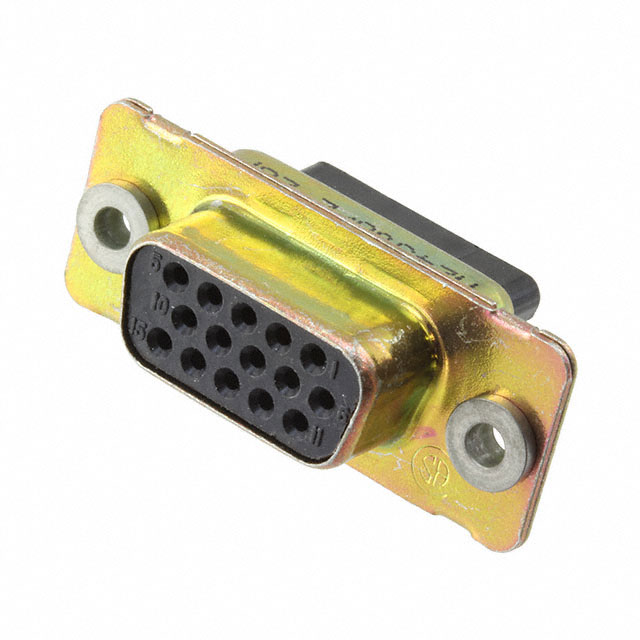

204524-1
Or copy the link below:
- Mfr.Part #
- 204524-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB HD HOUSING RCPT 15POS
- Stock
- 40,342
- In Stock ：
- 40,342
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub, D-Shaped Connector Housings
- Contact Style :
- Crimp
- Mount :
- Bushing
- DIN Conformance :
- No
- Body Breadth :
- 0.494 inch
- Factory Lead Time :
- 6 Weeks
- Lead Free :
- Not Applicable
- Plating :
- Cadmium
- Connector Type :
- Receptacle for Female Contacts
- Shell Material, Finish :
- Steel, Cadmium Plated
- Published :
- 2008
- Hole Diameter :
- 3.05 mm
- Contact Type :
- Signal
- ELV :
- Non-Compliant
- Empty Shell :
- yes
- Number of Rows :
- 3
- Reference Standard :
- UL, CSA
- Filter Feature :
- No
- Number of Positions :
- 15
- Reliability :
- COMMERCIAL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shell Size, Connector Layout :
- 1 DE E High Density
- Depth :
- 17.48mm
- Connector Style :
- D-Sub, High Density
- Insulation Material :
- GLASS FILLED POLYESTER
- Mounting Type :
- Free Hanging (In-Line)
- Orientation :
- Straight
- Packaging :
- Bulk
- Length :
- 30.81mm
- Housing Color :
- Black
- ECCN Code :
- EAR99
- IEC Conformance :
- No
- MIL Conformance :
- yes
- Option :
- GENERAL PURPOSE
- Total Number of Contacts :
- 15
- Contact Design :
- PREASSEM CONN
- Gender :
- FEMALE
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 90
- Mixed Contacts :
- No
- Shell Material :
- Steel
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Note :
- Contacts Not Included
- Radiation Hardening :
- No
- RoHS Status :
- Non-RoHS Compliant
- Flange Feature :
- Housing/Shell (Unthreaded)
- Datasheets
- 204524-1
204524-1 datasheet pdf and D-Sub, D-Shaped Connectors - Housings product details from TE Connectivity Aerospace, Defense and Marine stock available at Xinshop
