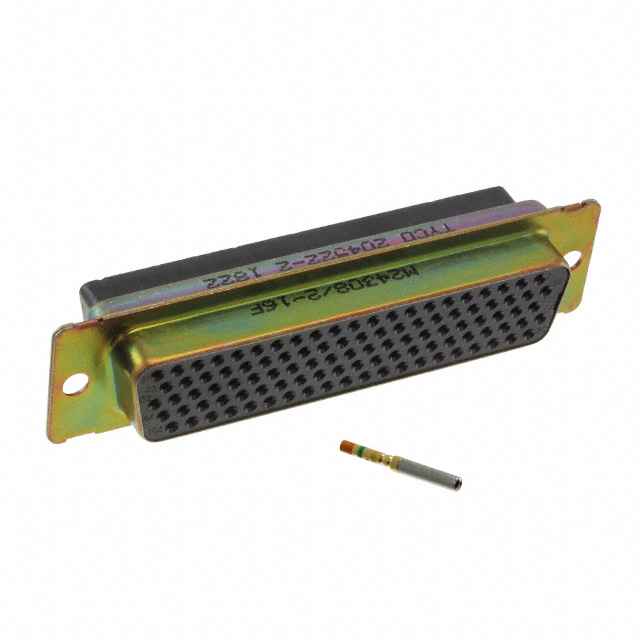

204522-2
Or copy the link below:
- Mfr.Part #
- 204522-2
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB HD RCPT 104P PNL MNT
- Stock
- 32
- In Stock ：
- 32
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub Connector Assemblies
- Number of Ports :
- 1
- Mounting Type :
- Panel Mount
- Additional Feature :
- STANDARD: MIL-DTL-24308, AMPLIMITE
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Mount :
- CABLE
- Connector Type :
- Receptacle, Female Sockets
- Sealable :
- No
- DIN Conformance :
- No
- Packaging :
- Bulk
- Hole Diameter :
- 3.175 mm
- Current Rating (Amps) :
- 7.5A
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 90; HD-22
- Plating :
- Cadmium
- Lead Free :
- Not Applicable
- Current Rating :
- 5A
- Empty Shell :
- No
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Option :
- GENERAL PURPOSE
- Mixed Contacts :
- No
- RoHS Status :
- Non-RoHS Compliant
- IEC Conformance :
- No
- Body Material :
- Steel
- Total Number of Contacts :
- 104
- Orientation :
- Straight
- Contact Finish :
- Gold
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Type :
- Signal
- Reliability :
- COMMERCIAL
- Shell Material, Finish :
- Steel, Cadmium Plated
- Number of Positions :
- 104
- Contact Design :
- PREASSEM CONN
- Contact Material :
- COPPER ALLOY
- Number of Rows :
- 5
- Filter Feature :
- No
- ECCN Code :
- EAR99
- Gender :
- Receptacle
- Flange Feature :
- Housing/Shell (Unthreaded)
- Depth :
- 17.06mm
- Published :
- 2011
- Length :
- 69.69mm
- ELV :
- Non-Compliant
- Operating Temperature :
- -55°C~125°C
- Connector Style :
- D-Sub, High Density
- Shell Size, Connector Layout :
- 6
- Factory Lead Time :
- 9 Weeks
- REACH SVHC :
- yes
- MIL Conformance :
- yes
- Termination :
- Crimp
- Datasheets
- 204522-2
Military, MIL-DTL-24308, AMPLIMITE 90; HD-22 Series D-Sub, High Density Receptacle, Female Sockets 104-Position Receptacle Signal Crimp 6 Panel Mount Copper Alloy Gold Steel, Cadmium Plated
204522-2 Overview
It comes in Receptacle, Female Sockets packaging.There is a mounting type of Panel Mount for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Military, MIL-DTL-24308, AMPLIMITE 90; HD-22 Series.Moreover, there are a number of other features, including STANDARD: MIL-DTL-24308, AMPLIMITE, to name just a few.A variety of tasks can be managed through its 1 ports.Cable is used to mount the part.In this case, the device operates at -55°C~125°C Operating Temperature.
204522-2 Features
Military, MIL-DTL-24308, AMPLIMITE 90; HD-22 series
204522-2 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
204522-2 D-Sub Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
