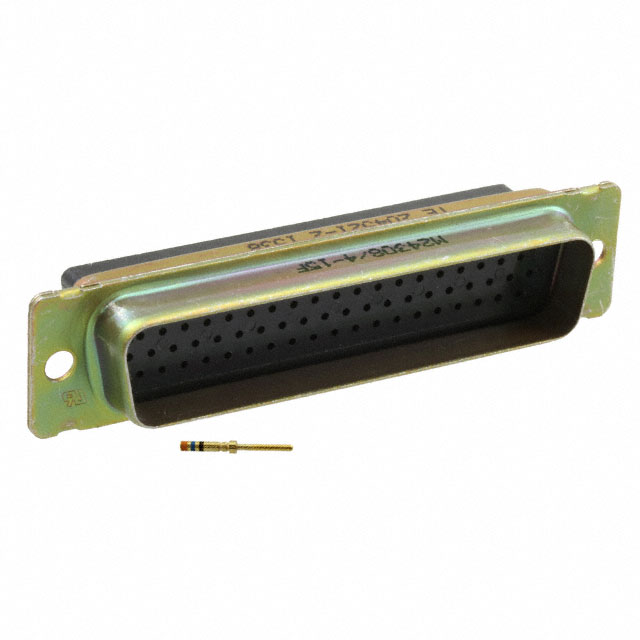

204521-2
Or copy the link below:
- Mfr.Part #
- 204521-2
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB HD PLUG 78P PNL MNT
- Stock
- 98
- In Stock ：
- 98
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub Connector Assemblies
- ELV :
- Non-Compliant
- Filter Feature :
- No
- Termination :
- Crimp
- Number of Positions :
- 78
- Mounting Type :
- Panel Mount
- Packaging :
- Bulk
- Total Number of Contacts :
- 78
- Shell Size, Connector Layout :
- 5 DD D High Density
- Body Breadth :
- 0.62 inch
- Length :
- 67.31mm
- Plating :
- Cadmium
- Hole Diameter :
- 3.175 mm
- Gender :
- Male
- Number of Ports :
- 1
- Number of Rows :
- 4
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 90; HD-22
- RoHS Status :
- Non-RoHS Compliant
- Mixed Contacts :
- No
- REACH SVHC :
- yes
- DIN Conformance :
- No
- Contact Design :
- PREASSEM CONN
- Contact Finish :
- Gold
- Shell Material, Finish :
- Steel, Cadmium Plated
- MIL Conformance :
- yes
- Current Rating :
- 5A
- Current Rating (Amps) :
- 7.5A
- Connector Style :
- D-Sub, High Density
- Option :
- GENERAL PURPOSE
- Published :
- 2007
- Body Material :
- Steel
- Empty Shell :
- No
- Flange Feature :
- Housing/Shell (Unthreaded)
- IEC Conformance :
- No
- Contact Material :
- COPPER ALLOY
- Material :
- Metal
- Mount :
- CABLE
- Lead Free :
- Contains Lead
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Type :
- Signal
- Depth :
- 16.81mm
- Orientation :
- Straight
- Housing Material :
- Polyester
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Connector Type :
- Plug, Male Pins
- Factory Lead Time :
- 10 Weeks
- Sealable :
- No
- Operating Temperature :
- -55°C~125°C
- Datasheets
- 204521-2
Military, MIL-DTL-24308, AMPLIMITE 90; HD-22 Series D-Sub, High Density Plug, Male Pins 78-Position Male Signal Crimp 5 DD D High Density Panel Mount Copper Alloy Gold Steel, Cadmium Plated
204521-2 Overview
Packaging for this item is Plug, Male Pins.Panel Mount is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Military, MIL-DTL-24308, AMPLIMITE 90; HD-22 Series.The device has 1 ports for managing a variety of tasks.It is mounted by Cable.It operates at an operating temperature of -55°C~125°C.
204521-2 Features
Military, MIL-DTL-24308, AMPLIMITE 90; HD-22 series
204521-2 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
204521-2 D-Sub Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
