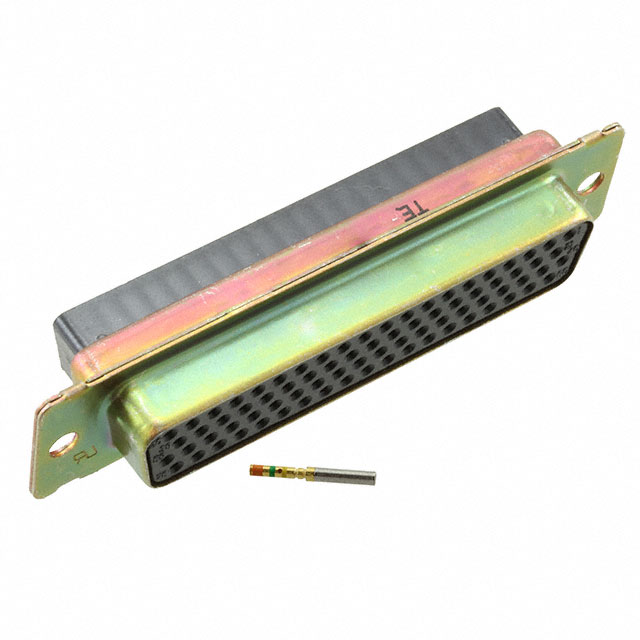

204520-2

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

D-Sub Connector Assemblies

Housing Material :

Polyester

Body Breadth :

0.605 inch

Orientation :

Straight

Mounting Type :

Panel Mount

Termination :

Crimp

Series :

Military, MIL-DTL-24308, AMPLIMITE 90; HD-22

Shell Size, Connector Layout :

5 DD D High Density

Wire Size (Min) :

28 AWG

Gender :

Receptacle

Contact Design :

PREASSEM CONN

Mixed Contacts :

No

DIN Conformance :

No

Connector Style :

D-Sub, High Density

Contact Finish :

Gold

Contact Type :

Signal

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

ELV :

Non-Compliant

RoHS Status :

Non-RoHS Compliant

Mount :

CABLE

Current Rating (Amps) :

7.5A

Length :

67.31mm

Reference Standard :

UL

Filter Feature :

No

Option :

GENERAL PURPOSE

Number of Ports :

1

Operating Temperature :

-55°C~125°C

MIL Conformance :

yes

Number of Rows :

4

Lead Free :

Not Applicable

Published :

2007

Shell Material, Finish :

Steel, Cadmium Plated

Empty Shell :

No

Connector Type :

Receptacle, Female Sockets

Body Material :

Steel

Number of Terminations :

78

Moisture Sensitivity Level (MSL) :

Not Applicable

Total Number of Contacts :

78

Wire Size (Max) :

22 AWG

Current Rating :

5A

Hole Diameter :

3.175 mm

Depth :

17.06mm

Plating :

Cadmium, Steel

IEC Conformance :

No

ECCN Code :

EAR99

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Packaging :

Bulk

Flange Feature :

Housing/Shell (Unthreaded)

Factory Lead Time :

10 Weeks

Sealable :

No

Contact Material :

COPPER ALLOY

REACH SVHC :

yes

Reliability :

COMMERCIAL
