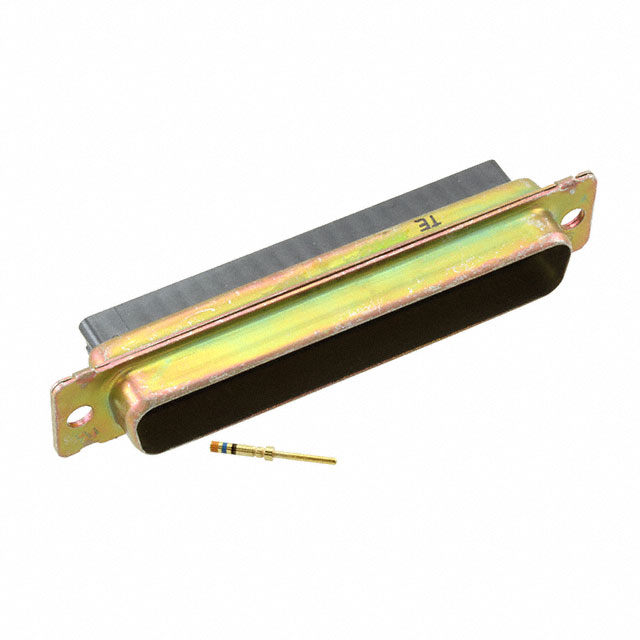

204519-2
Or copy the link below:
- Mfr.Part #
- 204519-2
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB HD PLUG 62P PNL MNT
- Stock
- 23
- In Stock ：
- 23
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub Connector Assemblies
- Shell Material :
- Steel
- Number of Rows :
- 3
- Mounting Type :
- Panel Mount
- Current Rating :
- 5A
- Length :
- 69.7mm
- Hole Diameter :
- 3.175 mm
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 90; HD-22
- Depth :
- 16.81mm
- Empty Shell :
- No
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- RoHS Status :
- Non-RoHS Compliant
- Option :
- GENERAL PURPOSE
- Termination :
- Crimp
- Packaging :
- Bulk
- DIN Conformance :
- No
- IEC Conformance :
- No
- Connector Style :
- D-Sub, High Density
- Total Number of Contacts :
- 62
- Gender :
- Male
- Factory Lead Time :
- 9 Weeks
- Operating Temperature :
- -55°C~125°C
- Filter Feature :
- No
- Shell Size, Connector Layout :
- 4 DC C High Density
- Orientation :
- Straight
- Sealable :
- No
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Contact Material :
- COPPER ALLOY
- MIL Conformance :
- yes
- Number of Ports :
- 1
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Contact Finish :
- Gold
- Contact Type :
- Signal
- ELV :
- Non-Compliant
- Housing Material :
- Polyester
- Lead Free :
- Not Applicable
- Connector Type :
- Plug, Male Pins
- Flange Feature :
- Housing/Shell (Unthreaded)
- Number of Terminations :
- 62
- Plating :
- Cadmium, Steel
- Mount :
- CABLE
- Current Rating (Amps) :
- 7.5A
- Shell Material, Finish :
- Steel, Cadmium Plated
- Published :
- 2007
- Mixed Contacts :
- No
- Datasheets
- 204519-2
Military, MIL-DTL-24308, AMPLIMITE 90; HD-22 Series D-Sub, High Density Plug, Male Pins Male Signal Crimp 4 DC C High Density Panel Mount Copper Alloy Gold Steel, Cadmium Plated
204519-2 Overview
The product comes in a package of Plug, Male Pins.Its mounting type is Panel Mount.Packaging is performed using a Bulk case.It is part of the Military, MIL-DTL-24308, AMPLIMITE 90; HD-22 Series of products.The device is equipped with 1 ports for the management of a variety of tasks.Cable mounts the part.62 terminations are present on the chip.There is no operating temperature for the device.
204519-2 Features
62 basic kinds of terminations
Military, MIL-DTL-24308, AMPLIMITE 90; HD-22 series
204519-2 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
204519-2 D-Sub Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
