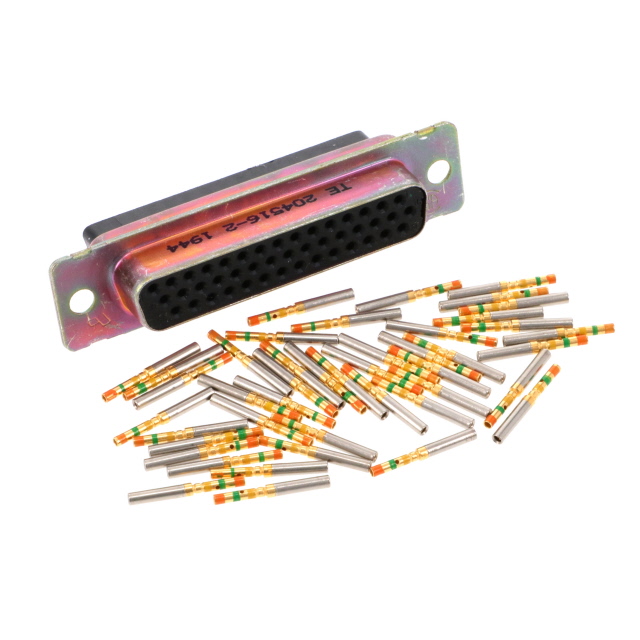

204516-2
Or copy the link below:
- Mfr.Part #
- 204516-2
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN D-SUB HD RCPT 44P PNL MNT
- Stock
- 86
- In Stock ：
- 86
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub Connector Assemblies
- Gender :
- Receptacle
- Empty Shell :
- No
- Hole Diameter :
- 3.048 mm
- Contact Type :
- Signal
- Connector Style :
- D-Sub, High Density
- Mounting Type :
- Panel Mount
- Operating Temperature :
- -55°C~125°C
- Length :
- 53.41mm
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 90; HD-22
- Shell Material :
- Steel
- DIN Conformance :
- No
- Total Number of Contacts :
- 44
- Contact Material :
- COPPER ALLOY
- Depth :
- 17.06mm
- Option :
- GENERAL PURPOSE
- Number of Rows :
- 3
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Mixed Contacts :
- No
- Orientation :
- Straight
- Published :
- 2007
- RoHS Status :
- Non-RoHS Compliant
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- MIL Conformance :
- yes
- Current Rating :
- 5A
- Factory Lead Time :
- 10 Weeks
- Number of Terminations :
- 44
- Housing Material :
- Polyphenylene
- Connector Type :
- Receptacle, Female Sockets
- Number of Ports :
- 1
- Current Rating (Amps) :
- 7.5A
- Shell Material, Finish :
- Steel, Cadmium Plated
- Shell Size, Connector Layout :
- 3 DB B High Density
- Contact Finish :
- Gold
- Mount :
- CABLE
- Filter Feature :
- No
- Flange Feature :
- Housing/Shell (Unthreaded)
- IEC Conformance :
- No
- Plating :
- Cadmium
- Package / Case :
- Metal
- Packaging :
- Bulk
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Termination :
- Crimp
- Lead Free :
- Not Applicable
- ELV :
- Non-Compliant
- Sealable :
- No
- Datasheets
- 204516-2
204516-2 Documents
Military, MIL-DTL-24308, AMPLIMITE 90; HD-22 Series D-Sub, High Density Receptacle, Female Sockets Receptacle Signal Crimp 3 DB B High Density Panel Mount Copper Alloy Gold Steel, Cadmium Plated
204516-2 Overview
The connector type Receptacle, Female Sockets refers to the connector type.The device's mounting type is Panel Mount.In order to package the product, a Bulk case is used.It belongs to the Military, MIL-DTL-24308, AMPLIMITE 90; HD-22 Series of products.In the packaging with the Metal, there is a device enclosed in the package.It features 1 ports for managing a variety of tasks.The part is mounted by Cable.The chip has 44 terminations.The device runs in -55°C~125°C Operating Temperature.
204516-2 Features
44 basic kinds of terminations
Military, MIL-DTL-24308, AMPLIMITE 90; HD-22 series
204516-2 Applications
There are a lot of TE Connectivity Aerospace, Defense and Marine
204516-2 D-Sub Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
