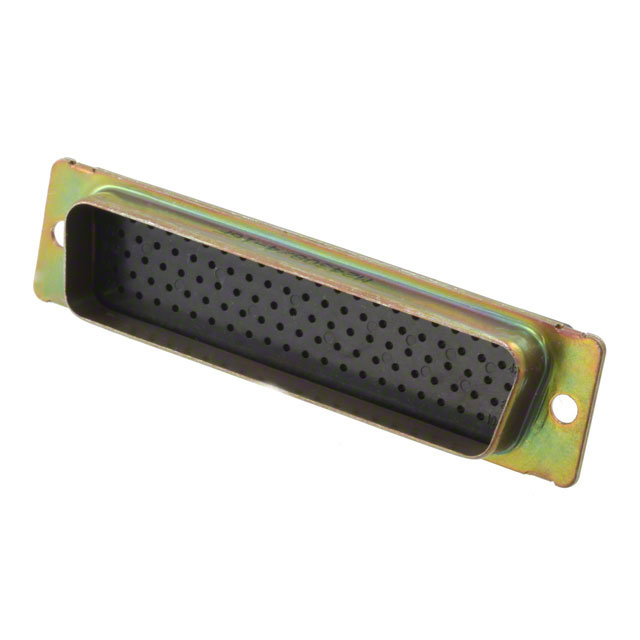

204511-1
Or copy the link below:
- Mfr.Part #
- 204511-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB HD HSG PLUG 104POS
- Stock
- 74
- In Stock ：
- 74
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub, D-Shaped Connector Housings
- Housing Color :
- Black
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Mounting Type :
- Free Hanging (In-Line)
- DIN Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Body Material :
- Metal
- Empty Shell :
- yes
- Connector Style :
- D-Sub, High Density
- Contact Plating :
- Gold
- Plating :
- Cadmium
- Shell Material :
- Steel
- Filter Feature :
- No
- Orientation :
- Straight
- Connector Type :
- Plug for Male Contacts
- Number of Rows :
- 5
- Additional Feature :
- STANDARD: MIL-DTL-24308
- RoHS Status :
- Non-RoHS Compliant
- Depth :
- 16.36mm
- Contact Style :
- Crimp
- Housing Material :
- Polyphenylene
- Number of Positions :
- 104
- Published :
- 2008
- Factory Lead Time :
- 10 Weeks
- Flange Feature :
- Housing/Shell (Unthreaded)
- Shell Size, Connector Layout :
- 6
- Contact Design :
- PREASSEM CONN
- ECCN Code :
- EAR99
- Gender :
- Male
- Lead Free :
- Contains Lead
- Current Rating :
- 5A
- Packaging :
- Bulk
- ELV :
- Non-Compliant
- MIL Conformance :
- yes
- Mixed Contacts :
- No
- Mount :
- Cable, Panel
- Contact Type :
- Signal
- IEC Conformance :
- No
- Number of Ports :
- 1
- Sealable :
- No
- Reference Standard :
- UL, CSA
- REACH SVHC :
- Unknown
- Reliability :
- COMMERCIAL
- Length :
- 69.32mm
- Total Number of Contacts :
- 104
- Hole Diameter :
- 3.048 mm
- Shell Material, Finish :
- Steel, Cadmium Plated
- Note :
- Contacts Not Included
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 90
- Option :
- GENERAL PURPOSE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 204511-1
