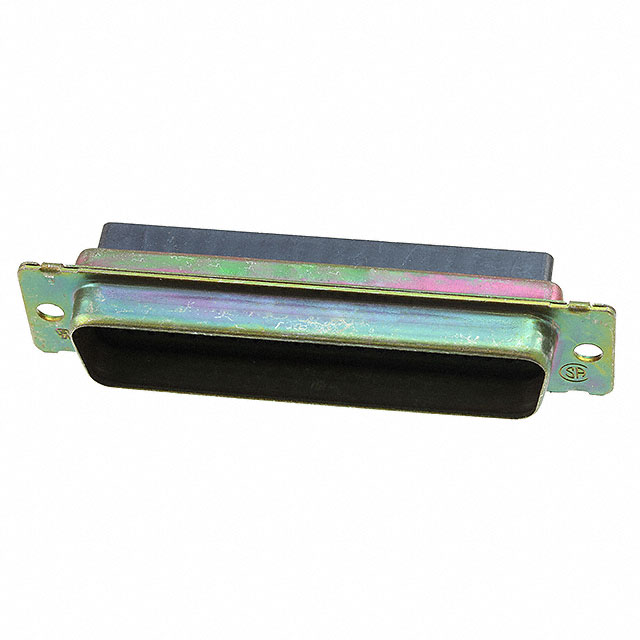

204509-1

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

D-Sub, D-Shaped Connector Housings

Current Rating :

5A

REACH SVHC :

Unknown

Mounting Type :

Free Hanging (In-Line)

Contact Type :

Signal

Factory Lead Time :

14 Weeks

Shell Size, Connector Layout :

5 DD D High Density

Packaging :

Bulk

Sealable :

No

Connector Style :

D-Sub, High Density

Number of Rows :

4

Mount :

Panel

MIL Conformance :

yes

Flange Feature :

Housing/Shell (Unthreaded)

DIN Conformance :

No

Color :

Black

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Contact Design :

PREASSEM CONN

Number of Ports :

1

Published :

2005

ELV :

Non-Compliant

Depth :

15.37mm

Contact Plating :

Gold

RoHS Status :

Non-RoHS Compliant

Body Material :

Metal

Series :

Military, MIL-DTL-24308, AMPLIMITE 90

Lead Free :

Contains Lead

Connector Type :

Plug for Male Contacts

Shell Material, Finish :

Steel, Cadmium Plated

Gender :

Male

Reliability :

COMMERCIAL

Dielectric Material :

Polyphenylene Sulfide (PPS)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Empty Shell :

No

Width :

9.525mm

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Number of Terminations :

78

Note :

Contacts Not Included

IEC Conformance :

No

Plating :

Cadmium

Contact Style :

Crimp

ECCN Code :

EAR99

Body Breadth :

0.605 inch

Orientation :

Straight

Length :

66.93mm

Operating Temperature (Min) :

-50°C

Filter Feature :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Total Number of Contacts :

78

Hole Diameter :

3.048 mm

Reference Standard :

UL, CSA

Housing Material :

Steel
