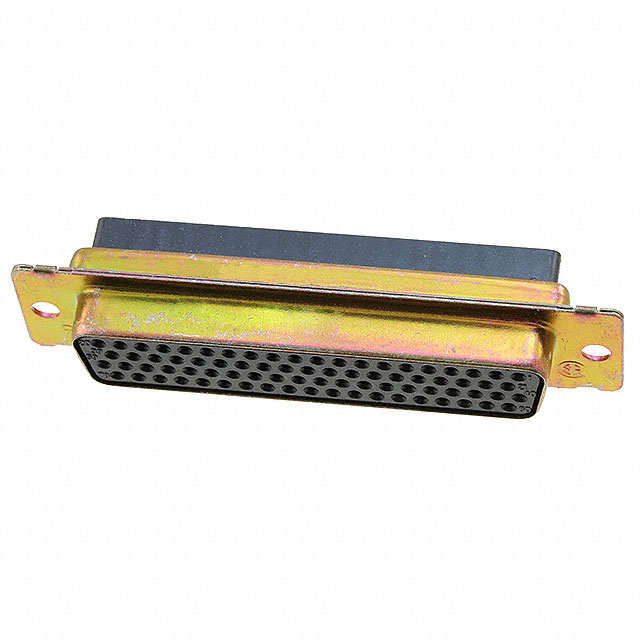

204508-1

Manufacturer :

TE Connectivity Aerospace Defense and Marine

Product Category :

D-Sub, D-Shaped Connector Housings

Contact Design :

PREASSEM CONN

Sealable :

No

Option :

GENERAL PURPOSE

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Length :

66.92mm

RoHS Status :

Non-RoHS Compliant

Empty Shell :

yes

ELV :

Non-Compliant

Number of Ports :

1

Reference Standard :

UL, CSA

Body Material :

Steel

Filter Feature :

No

Note :

Contacts Not Included

Color :

Black

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Orientation :

Straight

DIN Conformance :

No

Series :

Military, MIL-DTL-24308, AMPLIMITE 90

Number of Rows :

4

Mixed Contacts :

No

Contact Type :

Signal

Hole Diameter :

3.048 mm

MIL Conformance :

yes

Contact Style :

Crimp

Gender :

Receptacle

Housing Material :

Polyphenylene

Body Breadth :

0.605 inch

Operating Temperature (Min) :

-50°C

ECCN Code :

EAR99

Width :

9.525mm

Connector Style :

D-Sub, High Density

Factory Lead Time :

10 Weeks

Current Rating :

5A

Plating :

Cadmium

Dielectric Material :

Polyphenylene Sulfide (PPS)

Mount :

Panel

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Shell Material, Finish :

Steel, Cadmium Plated

Shell Size, Connector Layout :

5 DD D High Density

Packaging :

Bulk

Flange Feature :

Housing/Shell (Unthreaded)

Published :

2005

Connector Type :

Receptacle for Female Contacts

Total Number of Contacts :

78

IEC Conformance :

No

Mounting Type :

Free Hanging (In-Line)

Lead Free :

Contains Lead

Depth :

17.48mm

REACH SVHC :

yes

Number of Positions :

78
