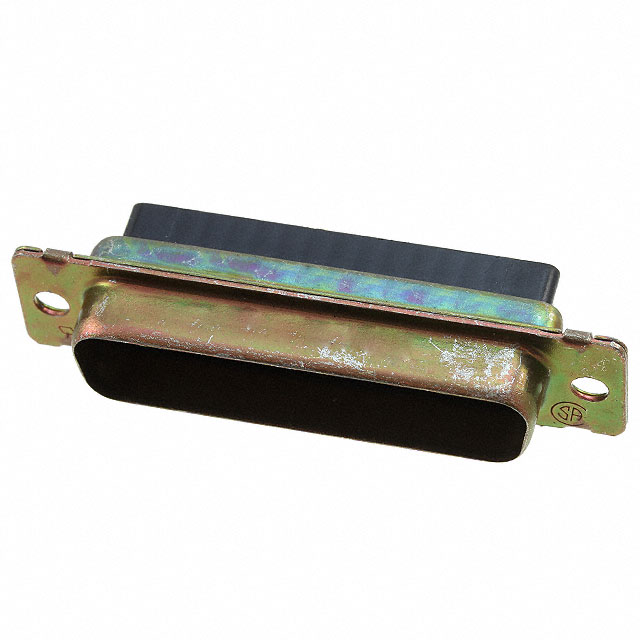

204505-1
Or copy the link below:
- Mfr.Part #
- 204505-1
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB HD HOUSING PLUG 44POS
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- D-Sub, D-Shaped Connector Housings
- Contact Plating :
- Gold
- Mount :
- Panel
- Body Plating :
- Cadmium
- Series :
- Military, MIL-DTL-24308, AMPLIMITE 90
- DIN Conformance :
- No
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Reliability :
- COMMERCIAL
- Empty Shell :
- yes
- MIL Conformance :
- yes
- Gender :
- Male
- Connector Type :
- Plug for Male Contacts
- IEC Conformance :
- No
- REACH SVHC :
- yes
- ELV :
- Non-Compliant
- Hole Diameter :
- 3.048 mm
- Shell Material, Finish :
- Steel, Cadmium Plated
- Lead Free :
- Contains Lead
- Orientation :
- Straight
- Width :
- 9.53mm
- Length :
- 53.42mm
- Body Material :
- Steel
- Contact Type :
- Signal
- Depth :
- 16.36mm
- Flange Feature :
- Housing/Shell (Unthreaded)
- Insulation Material :
- DIALLYL PHTHALATE/POLYPHENYLENE SULFIDE
- Contact Material :
- Brass
- Mounting Type :
- Free Hanging (In-Line)
- Number of Terminations :
- 44
- Current Rating :
- 5A
- Termination :
- Crimp
- Published :
- 2005
- Note :
- Contacts Not Included
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Option :
- GENERAL PURPOSE
- Factory Lead Time :
- 10 Weeks
- Body Breadth :
- 0.509 inch
- Packaging :
- Bulk
- Sealable :
- No
- Mixed Contacts :
- No
- Filter Feature :
- No
- Total Number of Contacts :
- 44
- Height :
- 12.55mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Connector Style :
- D-Sub, High Density
- Shell Size, Connector Layout :
- 3 DB B High Density
- RoHS Status :
- Non-RoHS Compliant
- Number of Rows :
- 3
- Number of Ports :
- 1
- Contact Design :
- PREASSEM CONN
- ECCN Code :
- EAR99
- Datasheets
- 204505-1
