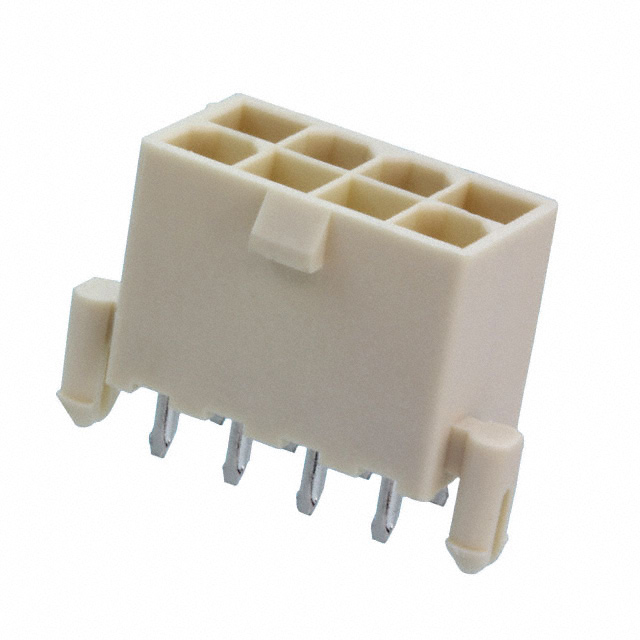

2029265-8
Or copy the link below:
- Mfr.Part #
- 2029265-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 4.2MM
- Stock
- 2,534
- In Stock ：
- 2,534
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Radiation Hardening :
- No
- Pitch :
- 4.2mm
- Number of Terminations :
- 8
- Feature :
- Board Lock, Glow Wire Compliant
- Max Voltage Rating (AC) :
- 600V
- Applications :
- General Purpose, Industrial, Lighting
- Packaging :
- Tray
- Pitch - Mating :
- 0.165 4.20mm
- Contact Material :
- Brass
- Style :
- Board to Cable/Wire
- Contact Length - Post :
- 0.138 3.50mm
- Orientation :
- Vertical
- Operating Temperature :
- -40°C~105°C
- Insulation Material :
- Polyamide (PA), Nylon
- PCB Mounting Orientation :
- Vertical
- Mounting Type :
- Through Hole
- Contact Type :
- Male Pin
- Min Operating Temperature :
- -40°C
- Number of Power Positions :
- 8
- Housing Color :
- Natural, White
- Factory Lead Time :
- 25 Weeks
- Plating :
- Tin
- Voltage - Rated :
- 600VAC
- Insulation Diameter :
- 3.0988 mm
- Circuit Application :
- Power
- Published :
- 2008
- Number of Contacts :
- 8
- Housing Material :
- Polyamide
- Length :
- 18mm
- Connector Type :
- Header
- Fastening Type :
- Locking Ramp
- Height :
- 12.8mm
- Contact Finish - Mating :
- Tin
- Current Rating (Amps) :
- 9A
- Contact Current Rating :
- 9A
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Termination :
- Solder
- Number of Positions :
- 8
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Thickness :
- 700μm
- Number of Rows :
- 2
- Sealable :
- No
- Number of Ports :
- 1
- Width :
- 9.75mm
- Insulation Color :
- White
- Contact Plating :
- Tin
- Insulation Height :
- 0.504 12.80mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Approval Agency :
- CSA
- Mount :
- Through Hole
- Contact Shape :
- Square
- Material Flammability Rating :
- UL94 V-0
- Color :
- White
- Number of Positions Loaded :
- All
- Operating Supply Voltage :
- 600V
- Series :
- VAL-U-LOK
- Contact Retention :
- Without
- ELV :
- Compliant
- Current Rating :
- 9A
- Flammability Rating :
- UL94 V-0
- Shrouding :
- Shrouded - 4 Wall
- Contact Finish - Post :
- Tin
- Max Operating Temperature :
- 221°C
- RoHS Status :
- RoHS Compliant
- Datasheets
- 2029265-8
VAL-U-LOK Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA), Nylon 8-Position Board to Cable/Wire 0.504 12.80mm Height
2029265-8 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole.A Tray case is used to package the product.A product of the VAL-U-LOK Series, it belongs to the range of products of that series.A temperature below 221°C is best for using it.The device must run at -40°C degrees.There are 1 ports available for a variety of tasks to be performed on it.This device may be used for the purpose of General Purpose, Industrial, Lighting.A number of features make the Board Lock, Glow Wire Compliant feature more powerful.Through Hole represents the mounting point for the part.A 8 termination is present on the chip.You're going to need 600V to power this memory.-40°C~105°C Operating Temperature is the default operating temperature for the device.
2029265-8 Features
8 basic kinds of terminations
VAL-U-LOK series
2029265-8 Applications
There are a lot of TE Connectivity AMP Connectors
2029265-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
