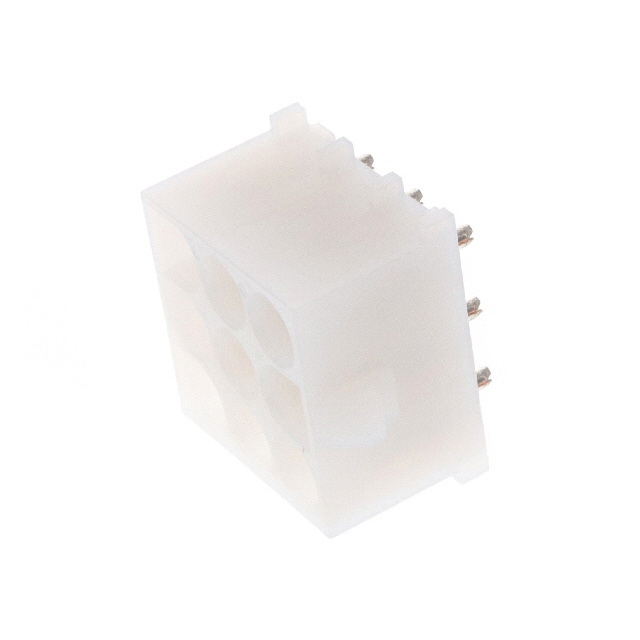

2029002-1
Or copy the link below:
- Mfr.Part #
- 2029002-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 09P UMNL HDR ASSY PC, NDH
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Material Flammability Rating :
- UL94 V-2
- Pitch - Mating :
- 0.250 6.35mm
- Insulation Material :
- Polyamide (PA), Nylon
- RoHS Status :
- RoHS Compliant
- Contact Current Rating :
- 6.5A
- Number of Rows :
- 3
- Series :
- Universal MATE-N-LOK
- Current Rating :
- 6.5A
- Connector Type :
- Header
- Style :
- Board to Board or Cable
- Termination :
- Solder
- Contact Material :
- Phosphor Bronze
- Row Spacing - Mating :
- 0.250 (6.35mm)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Height :
- 0.580 14.73mm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Operating Temperature :
- -40°C~105°C
- Sealable :
- No
- Insulation Color :
- Natural
- Packaging :
- Bulk
- Mount :
- Through Hole
- Contact Shape :
- Circular
- Mating Retention :
- With
- Contact Finish - Mating :
- Tin
- Mounting Type :
- Through Hole
- Number of Positions :
- 9
- Published :
- 2009
- Contact Type :
- Female Socket
- PCB Mount Retention :
- Without
- Factory Lead Time :
- 16 Weeks
- Fastening Type :
- Locking Ramp
- Number of Positions Loaded :
- All
- Orientation :
- Vertical
- Contact Length - Post :
- 0.130 3.30mm
- Datasheets
- 2029002-1
3 Rows Header Solder Phosphor Bronze Through Hole Bulk Tin Polyamide (PA), Nylon 9 Positions Female Socket
2029002-1 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Universal MATE-N-LOK Series of products.The part is mounted by Through Hole.The device runs in -40°C~105°C Operating Temperature.
2029002-1 Features
Universal MATE-N-LOK series
2029002-1 Applications
There are a lot of TE Connectivity AMP Connectors
2029002-1 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
