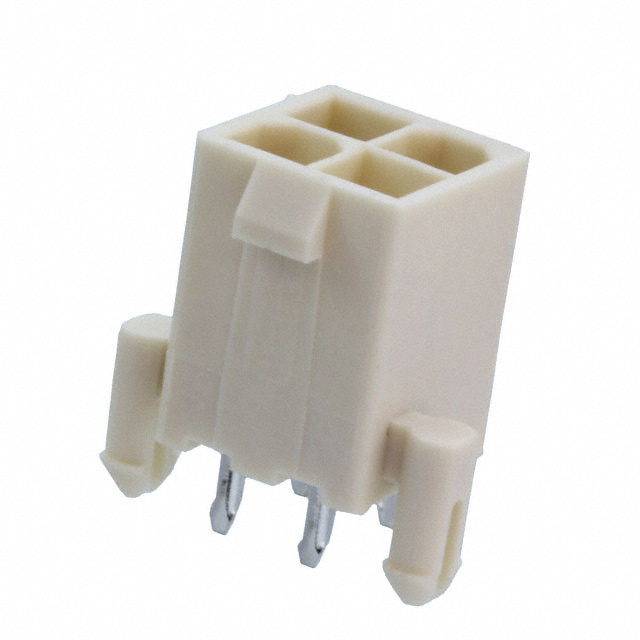

2029265-4
Or copy the link below:
- Mfr.Part #
- 2029265-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 4.2MM
- Stock
- 3,450
- In Stock ：
- 3,450
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Housing Color :
- Natural, White
- Mounting Type :
- Through Hole
- Width :
- 9.75mm
- Applications :
- General Purpose, Industrial, Lighting
- Fastening Type :
- Locking Ramp
- Operating Supply Voltage :
- 600V
- Contact Finish - Mating :
- Tin
- Contact Retention :
- Without
- Termination :
- Solder
- Plating :
- Tin
- Style :
- Board to Cable/Wire
- Shrouding :
- Shrouded - 4 Wall
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Operating Temperature :
- -40°C~105°C
- Mount :
- Through Hole
- Number of Positions :
- 4
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 16 Weeks
- RoHS Status :
- RoHS Compliant
- Sealable :
- No
- Radiation Hardening :
- No
- Contact Current Rating :
- 9A
- Height :
- 12.8mm
- Feature :
- Board Lock, Glow Wire Compliant
- Published :
- 2008
- Contact Type :
- Male Pin
- Approval Agency :
- CSA
- Pitch - Mating :
- 0.165 4.20mm
- Max Operating Temperature :
- 221°C
- Contact Plating :
- Tin
- Packaging :
- Tray
- Current Rating (Amps) :
- 9A
- Contact Finish - Post :
- Tin
- Orientation :
- Vertical
- Voltage - Rated :
- 600VAC
- Flammability Rating :
- UL94 V-0
- Insulation Diameter :
- 3.0988 mm
- Series :
- VAL-U-LOK
- Connector Type :
- Header
- PCB Mounting Orientation :
- Vertical
- ELV :
- Compliant
- Length :
- 9.6mm
- Contact Shape :
- Square
- Min Operating Temperature :
- -40°C
- Pitch :
- 4.2mm
- Insulation Material :
- Polyamide (PA), Nylon
- Insulation Color :
- White
- Contact Material :
- Brass
- Lead Free :
- Lead Free
- Insulation Height :
- 0.504 12.80mm
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Material Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Polyamide
- Number of Power Positions :
- 4
- Number of Contacts :
- 4
- Current Rating :
- 9A
- Number of Rows :
- 2
- Circuit Application :
- Power
- PCB Thickness :
- 700μm
- Contact Length - Post :
- 0.138 3.50mm
- Color :
- White
- Datasheets
- 2029265-4
VAL-U-LOK Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA), Nylon 4-Position Board to Cable/Wire 0.504 12.80mm Height
2029265-4 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the VAL-U-LOK Series.If the temperature is below 221°C, it's best to use it.-40°C is the minimum temperature for this device.There are a variety of possible applications for this device, including General Purpose, Industrial, Lighting.Several benefits come from the Board Lock, Glow Wire Compliant feature.There is a mounting hole at Through Hole.It runs on 600V voltage.Devices operate at -40°C~105°C operating temperatures.
2029265-4 Features
VAL-U-LOK series
2029265-4 Applications
There are a lot of TE Connectivity AMP Connectors
2029265-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
