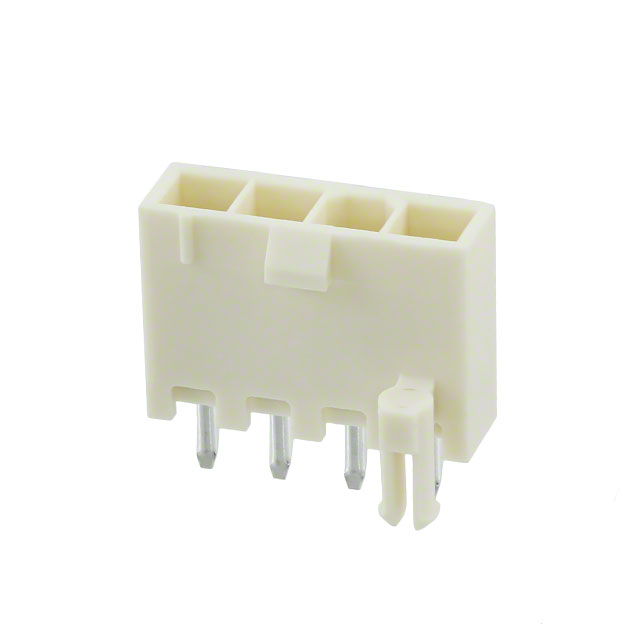

2029181-4
Or copy the link below:
- Mfr.Part #
- 2029181-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 4.2MM
- Stock
- 5,631
- In Stock ：
- 5,631
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Pitch :
- 4.2mm
- Connector Type :
- Header
- Flammability Rating :
- UL94 V-0
- Approval Agency :
- CSA
- Number of Signal Positions :
- 0
- Min Operating Temperature :
- -40°C
- Housing Color :
- White, Natural
- Plating :
- Tin
- Length :
- 18.00098mm
- Packaging :
- Bulk
- Voltage - Rated :
- 600VAC
- Operating Supply Voltage :
- 600V
- Feature :
- Board Lock, Glow Wire Compliant
- Sealable :
- No
- Insulation Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- PCB Thickness :
- 63μm
- Number of Rows :
- 1
- Number of Power Positions :
- 4
- Contact Shape :
- Square
- Number of Positions Loaded :
- All
- Mounting Type :
- Through Hole
- Width :
- 5.4102mm
- Number of Contacts :
- 4
- Fastening Type :
- Locking Ramp
- Mount :
- Through Hole
- Contact Finish - Mating :
- Tin
- Height :
- 12.8mm
- Current Rating :
- 9A
- Contact Plating :
- Tin
- Number of Positions :
- 4
- Insulation Diameter :
- 3.0988 mm
- Contact Type :
- Male Pin
- PCB Mounting Orientation :
- Vertical
- Orientation :
- Vertical
- Insulation Color :
- Natural
- RoHS Status :
- RoHS Compliant
- Max Operating Temperature :
- 221°C
- Factory Lead Time :
- 16 Weeks
- Contact Length - Post :
- 0.138 3.50mm
- ELV :
- Compliant
- Insulation Height :
- 0.504 12.80mm
- Pitch - Mating :
- 0.165 4.20mm
- Contact Material :
- Brass
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Circuit Application :
- Power
- Contact Finish - Post :
- Tin
- Current Rating (Amps) :
- 9A
- Color :
- White
- Material Flammability Rating :
- UL94 V-0
- Contact Retention :
- Without
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Current Rating :
- 9A
- Shrouding :
- Shrouded - 4 Wall
- Applications :
- General Purpose, Industrial, Lighting
- Series :
- VAL-U-LOK
- Termination :
- Solder
- Published :
- 2008
- Style :
- Board to Cable/Wire
- Operating Temperature :
- -40°C~105°C
- Datasheets
- 2029181-4
VAL-U-LOK Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6, Glass Filled 4-Position Board to Cable/Wire 0.504 12.80mm Height
2029181-4 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the VAL-U-LOK Series.When the temperature is below 221°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.The device could be used for the following application: General Purpose, Industrial, Lighting.There are a number of advantages to its Board Lock, Glow Wire Compliant feature.Part Through Hole is mounted to the part.600V is the operating supply voltage for this memory.As a result, the device runs at -40°C~105°C Operating Temperature.
2029181-4 Features
VAL-U-LOK series
2029181-4 Applications
There are a lot of TE Connectivity AMP Connectors
2029181-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
