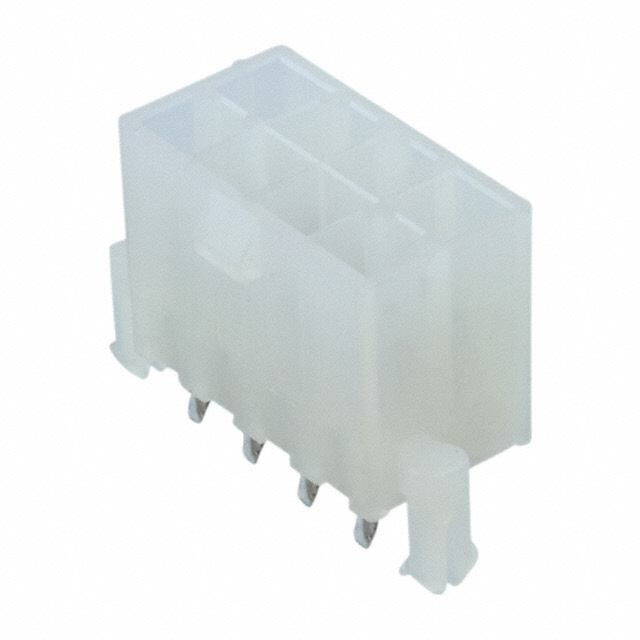

2029172-8
Or copy the link below:
- Mfr.Part #
- 2029172-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 8POS 4.2MM
- Stock
- 30,247
- In Stock ：
- 30,247
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Shrouding :
- Shrouded - 4 Wall
- Contact Retention :
- Without
- Connector Type :
- Header
- Fastening Type :
- Locking Ramp
- Contact Finish - Post :
- Tin
- PCB Mount Retention :
- With
- Applications :
- General Purpose, Industrial, Lighting
- Style :
- Board to Cable/Wire
- Mating Retention :
- With
- ELV :
- Compliant
- Mount :
- Through Hole
- Length - Tail :
- 3.5052mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Sealable :
- No
- Pitch :
- 4.191mm
- Circuit Application :
- Power
- Current Rating (Amps) :
- 9A
- Contact Finish - Mating :
- Tin
- Contact Length - Post :
- 0.138 3.50mm
- Feature :
- Board Lock
- Min Operating Temperature :
- -40°C
- Approval Agency :
- UL
- Series :
- VAL-U-LOK
- Published :
- 2008
- Insulation Height :
- 0.504 12.80mm
- Packaging :
- Bulk
- Max Operating Temperature :
- 221°C
- Contact Shape :
- Square
- Number of Rows :
- 2
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Height :
- 12.8mm
- Operating Temperature :
- -40°C~105°C
- Voltage - Rated :
- 600VAC
- Width :
- 9.75mm
- Orientation :
- Vertical
- Flammability Rating :
- UL94 V-2
- RoHS Status :
- RoHS Compliant
- Termination :
- Solder
- Current Rating :
- 9A
- Contact Plating :
- Tin
- Contact Type :
- Male Pin
- Housing Material :
- Nylon
- Length :
- 18mm
- PCB Thickness :
- 1.7526mm
- Number of Positions :
- 8
- Number of Positions Loaded :
- All
- Mounting Type :
- Through Hole
- PCB Mounting Orientation :
- Vertical
- Number of Contacts :
- 8
- Factory Lead Time :
- 16 Weeks
- Material Flammability Rating :
- UL94 V-2
- Operating Supply Voltage :
- 600V
- Contact Material :
- Brass
- Insulation Material :
- Polyamide (PA), Nylon
- Contact Current Rating :
- 9A
- Mating Alignment :
- With
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Pitch - Mating :
- 0.165 4.20mm
- Datasheets
- 2029172-8
VAL-U-LOK Series 2-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA), Nylon 8-Position Board to Cable/Wire 0.504 12.80mm Height
2029172-8 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the VAL-U-LOK Series.Use it below 221°C.A minimum temperature of -40°C must be maintained for the operation of this device.There is the possibility of using the device for General Purpose, Industrial, Lighting.In many ways, Board Lock makes it more powerful.By Through Hole, the part is mounted.The operating voltage of this memory is 600V.Operating temperature is set to -40°C~105°C.
2029172-8 Features
VAL-U-LOK series
2029172-8 Applications
There are a lot of TE Connectivity AMP Connectors
2029172-8 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
