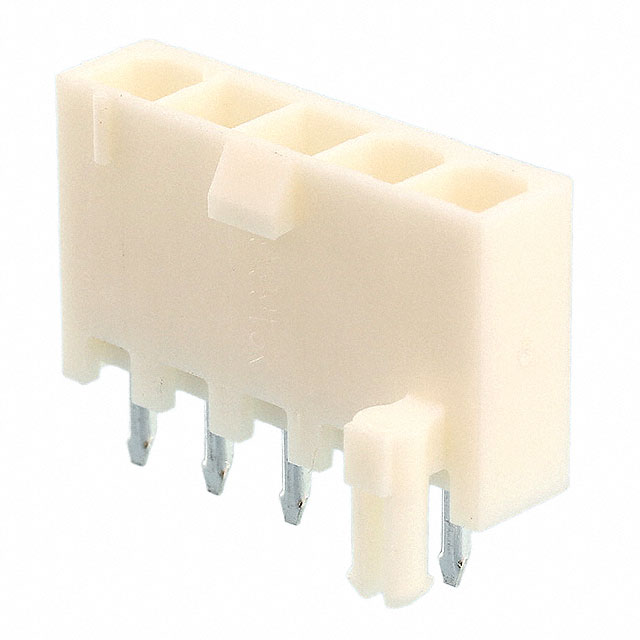

2029167-5
Or copy the link below:
- Mfr.Part #
- 2029167-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 5POS 4.2MM
- Stock
- 8,735
- In Stock ：
- 8,735
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Insulation Material :
- Polyamide (PA), Nylon
- RoHS Status :
- RoHS Compliant
- Pitch - Mating :
- 0.165 4.20mm
- Insulation Diameter :
- 3.0988 mm
- Mounting Type :
- Through Hole
- Empty Shell :
- No
- Width :
- 5.4102mm
- Filter Feature :
- No
- Connector Type :
- Header
- Voltage - Rated :
- 600VAC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Thickness :
- 63μm
- Contact Material :
- Brass
- Sealable :
- No
- Flammability Rating :
- UL94 V-0
- Packaging :
- Bulk
- Published :
- 2008
- Length :
- 22.2mm
- Orientation :
- Vertical
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mount :
- Through Hole
- MIL Conformance :
- No
- DIN Conformance :
- No
- Contact Length - Post :
- 0.138 3.50mm
- Applications :
- General Purpose, Industrial, Lighting
- Number of Signal Positions :
- 0
- Contact Finish - Mating :
- Tin
- ELV :
- Compliant
- Fastening Type :
- Locking Ramp
- Shrouding :
- Shrouded - 4 Wall
- Housing Material :
- Nylon
- Mixed Contacts :
- No
- Height :
- 12.8mm
- Insulation Height :
- 0.504 12.80mm
- Style :
- Board to Cable/Wire
- Contact Retention :
- Without
- Contact Shape :
- Square
- Number of Rows :
- 1
- Circuit Application :
- Power
- Housing Color :
- White
- Approval Agency :
- CSA
- Series :
- VAL-U-LOK
- Current Rating :
- 9A
- Operating Supply Voltage :
- 600V
- Contact Type :
- Male Pin
- Operating Temperature :
- -40°C~105°C
- Number of Power Positions :
- 5
- Number of Positions Loaded :
- All
- Termination :
- Solder
- Feature :
- Board Lock
- Factory Lead Time :
- 16 Weeks
- Pbfree Code :
- yes
- Material Flammability Rating :
- UL94 V-0
- IEC Conformance :
- No
- Contact Current Rating :
- 9A
- Datasheets
- 2029167-5
VAL-U-LOK Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA), Nylon Board to Cable/Wire 0.504 12.80mm Height
2029167-5 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the VAL-U-LOK Series of products.General Purpose, Industrial, Lighting is a possible application for the device.Its Board Lock feature renders it more powerful in many ways.The part is mounted by Through Hole.This memory's operating supply voltage is 600V.The device runs in -40°C~105°C Operating Temperature.
2029167-5 Features
VAL-U-LOK series
2029167-5 Applications
There are a lot of TE Connectivity AMP Connectors
2029167-5 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
