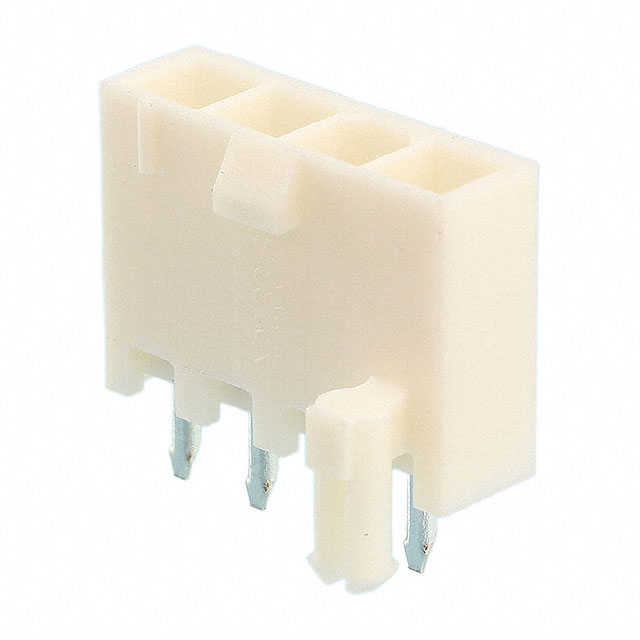

2029167-4
Or copy the link below:
- Mfr.Part #
- 2029167-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 4.2MM
- Stock
- 33,305
- In Stock ：
- 33,305
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- PCB Thickness :
- 63μm
- Empty Shell :
- No
- Height :
- 12.8mm
- Contact Material :
- Brass
- Applications :
- General Purpose, Industrial, Lighting
- Connector Type :
- Header
- Mixed Contacts :
- No
- Contact Finish - Mating :
- Tin
- Number of Signal Positions :
- 0
- Shrouding :
- Shrouded - 4 Wall
- Contact Retention :
- Without
- Pbfree Code :
- yes
- Width :
- 5.4102mm
- Number of Positions Loaded :
- All
- Voltage - Rated :
- 600VAC
- MIL Conformance :
- No
- Insulation Height :
- 0.504 12.80mm
- Termination :
- Solder
- Contact Length - Post :
- 0.138 3.50mm
- Orientation :
- Vertical
- Style :
- Board to Cable/Wire
- Published :
- 2008
- Housing Color :
- White
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- DIN Conformance :
- No
- Pitch - Mating :
- 0.165 4.20mm
- Contact Current Rating :
- 9A
- Insulation Diameter :
- 3.0988 mm
- Series :
- VAL-U-LOK
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Shape :
- Square
- Packaging :
- Bulk
- Length :
- 18.00098mm
- Operating Supply Voltage :
- 600V
- Fastening Type :
- Locking Ramp
- RoHS Status :
- RoHS Compliant
- Number of Rows :
- 1
- ELV :
- Compliant
- Number of Power Positions :
- 4
- Sealable :
- No
- IEC Conformance :
- No
- Insulation Material :
- Polyamide (PA), Nylon
- Circuit Application :
- Power
- Mounting Type :
- Through Hole
- Housing Material :
- Nylon
- Mount :
- Through Hole
- Current Rating :
- 9A
- Feature :
- Board Lock
- Contact Type :
- Male Pin
- Operating Temperature :
- -40°C~105°C
- Factory Lead Time :
- 16 Weeks
- Filter Feature :
- No
- Approval Agency :
- CSA
- Material Flammability Rating :
- UL94 V-0
- Flammability Rating :
- UL94 V-0
- Datasheets
- 2029167-4
VAL-U-LOK Series 1-Row Header Solder Brass Bulk Through Hole Tin Polyamide (PA), Nylon Board to Cable/Wire 0.504 12.80mm Height
2029167-4 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number VAL-U-LOK belongs to the VAL-U-LOK Series.In addition to General Purpose, Industrial, Lighting, there are other possible applications for the device.In many ways, it is more powerful due to its Board Lock feature.There is a Through Hole mount on the part.A 600V voltage is used to supply power to this memory.This device operates at a temperature of -40°C~105°C.
2029167-4 Features
VAL-U-LOK series
2029167-4 Applications
There are a lot of TE Connectivity AMP Connectors
2029167-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
