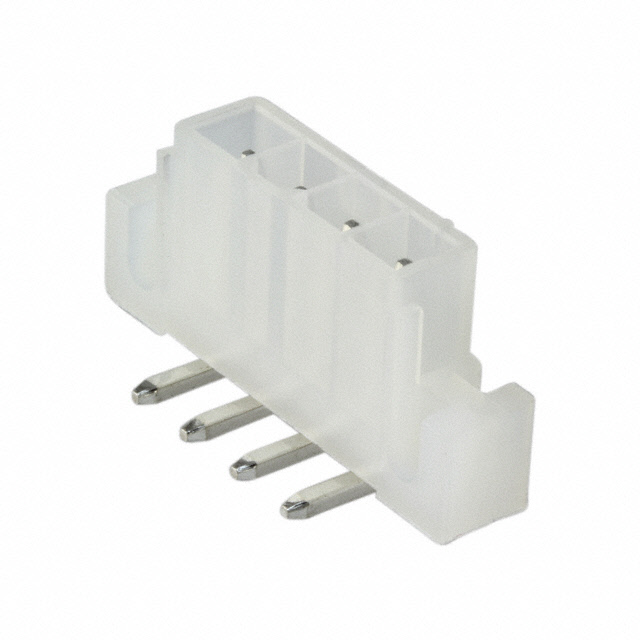

2029152-4
Or copy the link below:
- Mfr.Part #
- 2029152-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 4POS 4.2MM
- Stock
- 41,000
- In Stock ：
- 41,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Length :
- 18mm
- Sealable :
- No
- Contact Length - Post :
- 0.138 3.50mm
- Approval Agency :
- UL
- Mating Retention :
- With
- RoHS Status :
- RoHS Compliant
- Contact Plating :
- Tin
- Length - Tail :
- 3.5052mm
- Flammability Rating :
- UL94 V-2
- Mount :
- Through Hole
- Pitch :
- 4.191mm
- Style :
- Board to Cable/Wire
- Contact Current Rating :
- 9A
- Operating Temperature :
- -40°C~105°C
- Circuit Application :
- Power
- Current Rating (Amps) :
- 9A
- Series :
- VAL-U-LOK
- Current Rating :
- 9A
- Voltage - Rated :
- 600VAC
- Contact Shape :
- Square
- Fastening Type :
- Locking Ramp
- Width :
- 12.4968mm
- Pitch - Mating :
- 0.165 4.20mm
- Published :
- 2011
- Orientation :
- RIGHT ANGLE
- Number of Rows :
- 1
- Housing Color :
- Natural
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- PCB Thickness :
- 1.6002mm
- Contact Finish - Mating :
- Tin
- Contact Type :
- Male Pin
- Feature :
- Board Guide
- Number of Contacts :
- 4
- Insulation Color :
- Natural
- Packaging :
- Bag
- ELV :
- Compliant
- Applications :
- General Purpose, Industrial, Lighting
- Contact Material :
- Brass
- Termination :
- Solder
- Number of Positions :
- 4
- Connector Type :
- Header
- Shrouding :
- Shrouded - 4 Wall
- Factory Lead Time :
- 16 Weeks
- Insulation Material :
- Polyamide (PA), Nylon
- Number of Positions Loaded :
- All
- Height :
- 5.4102mm
- Max Operating Temperature :
- 221°C
- Insulation Diameter :
- 3.1 mm
- PCB Mount Retention :
- With
- Contact Finish - Post :
- Tin
- Mounting Type :
- Through Hole, Right Angle
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Housing Material :
- Nylon
- Material Flammability Rating :
- UL94 V-2
- Mating Alignment :
- With
- PCB Mounting Orientation :
- RIGHT ANGLE
- Operating Supply Voltage :
- 600V
- Min Operating Temperature :
- -40°C
- Datasheets
- 2029152-4
VAL-U-LOK Series 1-Row Header Solder Brass Bag Through Hole, Right Angle Tin Polyamide (PA), Nylon 4-Position Board to Cable/Wire
2029152-4 Overview
It comes in a Header package.Through Hole, Right Angle is the mounting type of the device.We pack the product in a Bag case.This is from the VAL-U-LOK Series.The ideal temperature for using it is below 221°C.There must be a minimum temperature of -40°C.This device can be used for General Purpose, Industrial, Lighting.A number of advantages can be derived from its Board Guide feature.This part is mounted by Through Hole. 600V is the operating voltage of this memory.-40°C~105°C Operating Temperature is the default.
2029152-4 Features
VAL-U-LOK series
2029152-4 Applications
There are a lot of TE Connectivity AMP Connectors
2029152-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
