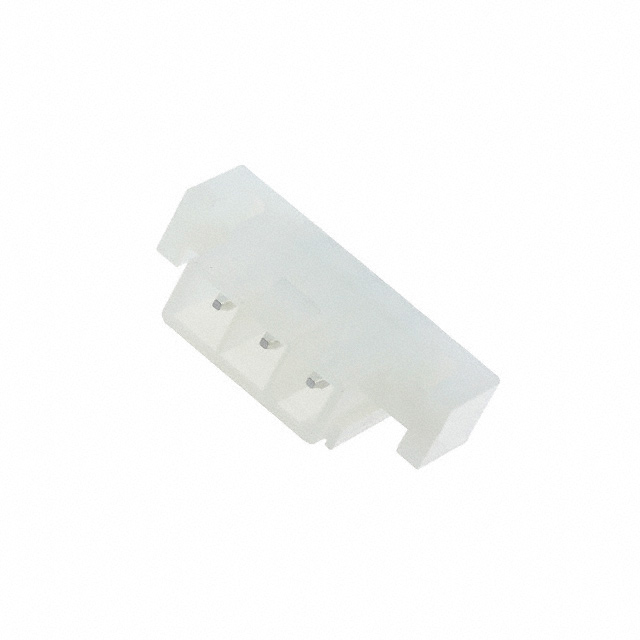

2029152-3
Or copy the link below:
- Mfr.Part #
- 2029152-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 3POS 4.2MM
- Stock
- 20,369
- In Stock ：
- 20,369
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Contacts :
- 3
- Feature :
- Board Guide
- Number of Rows :
- 1
- Shrouding :
- Shrouded - 4 Wall
- Mating Alignment :
- With
- Contact Plating :
- Tin
- Approval Agency :
- UL
- Min Operating Temperature :
- -40°C
- Style :
- Board to Cable/Wire
- Mount :
- Through Hole
- Mounting Type :
- Through Hole, Right Angle
- Contact Current Rating :
- 9A
- Width :
- 12.4968mm
- Housing Color :
- Natural
- Insulation Material :
- Polyamide (PA), Nylon
- Contact Shape :
- Square
- Orientation :
- RIGHT ANGLE
- Pitch - Mating :
- 0.165 4.20mm
- Mating Retention :
- With
- Contact Finish - Post :
- Tin
- Length - Tail :
- 3.5052mm
- Termination :
- Solder
- Height :
- 5.4102mm
- ELV :
- Compliant
- PCB Mount Retention :
- With
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Male Pin
- Pitch :
- 4.191mm
- Published :
- 2011
- Number of Positions :
- 3
- Packaging :
- Bag
- Connector Type :
- Header
- PCB Thickness :
- 1.6002mm
- Contact Material :
- Brass
- Voltage - Rated :
- 600VAC
- Current Rating (Amps) :
- 9A
- Flammability Rating :
- UL94 V-2
- Housing Material :
- Nylon
- Applications :
- General Purpose, Industrial, Lighting
- Fastening Type :
- Locking Ramp
- Contact Finish - Mating :
- Tin
- RoHS Status :
- RoHS Compliant
- Operating Supply Voltage :
- 600V
- Number of Positions Loaded :
- All
- Insulation Color :
- Natural
- Series :
- VAL-U-LOK
- Material Flammability Rating :
- UL94 V-2
- Circuit Application :
- Power
- Factory Lead Time :
- 16 Weeks
- Max Operating Temperature :
- 221°C
- Insulation Diameter :
- 3.1 mm
- Sealable :
- No
- Length :
- 13.7922mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Contact Length - Post :
- 0.138 3.50mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Current Rating :
- 9A
- Operating Temperature :
- -40°C~105°C
- Datasheets
- 2029152-3
VAL-U-LOK Series 1-Row Header Solder Brass Bag Through Hole, Right Angle Tin Polyamide (PA), Nylon 3-Position Board to Cable/Wire
2029152-3 Overview
The product comes in a package of Header.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Bag case is used.The product is a member of the VAL-U-LOK Series.Use it when the temperature is below 221°C.Temperatures below -40°C are required for this device to operate.The device may be used for the following applications: General Purpose, Industrial, Lighting.It is more powerful in many ways due to its Board Guide feature.It is mounted by Through Hole.Its operating supply voltage is 600V.It operates at an operating temperature of -40°C~105°C.
2029152-3 Features
VAL-U-LOK series
2029152-3 Applications
There are a lot of TE Connectivity AMP Connectors
2029152-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
