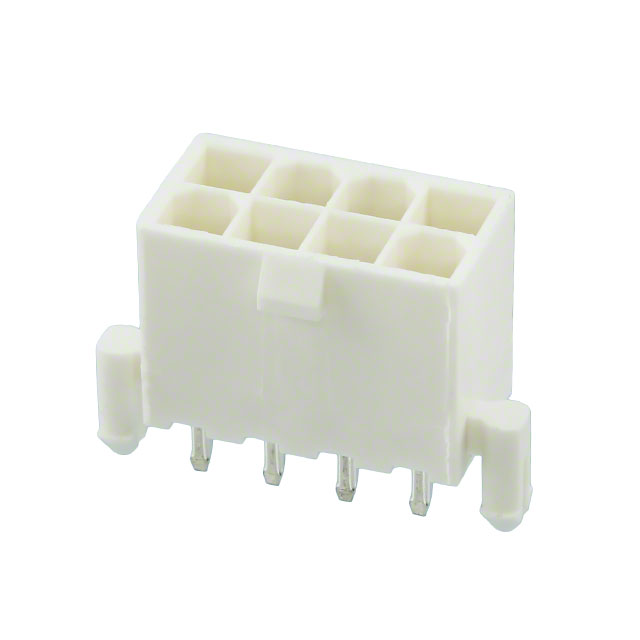

2029059-8

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Contact Length - Post :

0.138 3.50mm

Approval Agency :

UL

Insulation Color :

White

Number of Positions :

8

Current Rating :

9A

Max Operating Temperature :

221°C

Number of Contacts :

8

Mount :

Through Hole

Min Operating Temperature :

-40°C

Pitch - Mating :

0.165 4.20mm

Insulation Height :

0.504 12.80mm

Contact Material :

Brass

Contact Type :

Male Pin

Height :

12.8mm

Connector Type :

Header

Pitch :

4.191mm

Operating Supply Voltage :

600V

Applications :

General Purpose, Industrial, Lighting

Flammability Rating :

UL94 V-2

Circuit Application :

Power

Contact Finish - Post :

Tin

Insulation Diameter :

3.1 mm

Packaging :

Tray

Termination :

Solder

Style :

Board to Cable/Wire

Fastening Type :

Locking Ramp

Mounting Type :

Through Hole

PCB Thickness :

1.6002mm

Number of Rows :

2

Row Spacing - Mating :

0.165 (4.20mm)

Series :

VAL-U-LOK

PCB Mounting Orientation :

Vertical

Housing Color :

White

Contact Plating :

Tin

Current Rating (Amps) :

9A

RoHS Status :

RoHS Compliant

Contact Shape :

Square

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

Color :

White

Radiation Hardening :

No

Contact Finish - Mating :

Tin

Material Flammability Rating :

UL94 V-0

Operating Temperature :

-40°C~105°C

Factory Lead Time :

16 Weeks

Housing Material :

Nylon

Contact Retention :

With

Voltage - Rated :

600VAC

Number of Positions Loaded :

All

Mating Alignment :

With

Length :

18mm

Length - Tail :

3.5052mm

PCB Mount Retention :

With

Mating Retention :

With

Orientation :

Vertical

Width :

9.8044mm

Feature :

Board Lock, Glow Wire Compliant

Published :

2008

Insulation Material :

Polyamide (PA66), Nylon 6/6

Sealable :

No

Contact Current Rating :

9A

Shrouding :

Shrouded - 4 Wall

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ELV :

Compliant
