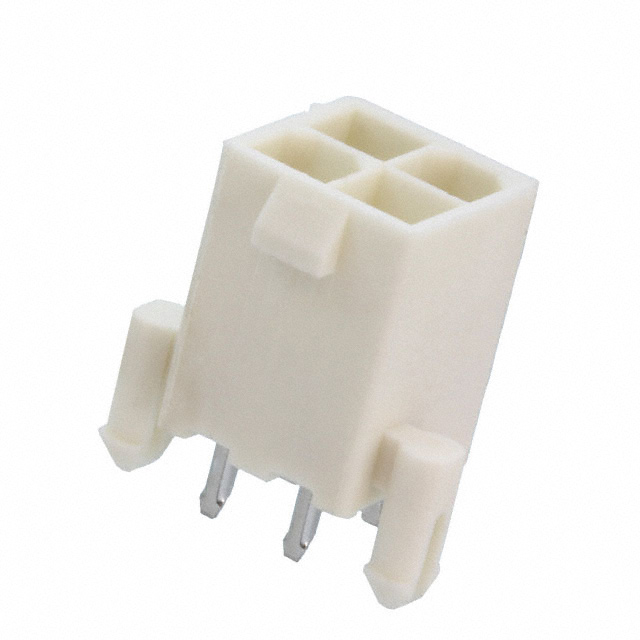

2029059-4
Or copy the link below:
- Mfr.Part #
- 2029059-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 4.2MM
- Stock
- 43,240
- In Stock ：
- 43,240
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Finish - Post :
- Tin
- Operating Supply Voltage :
- 600V
- Contact Material :
- Brass
- Shrouding :
- Shrouded - 4 Wall
- ELV :
- Compliant
- Contact Length - Post :
- 0.138 3.50mm
- Mating Alignment :
- With
- Number of Signal Positions :
- 4
- Contact Current Rating :
- 9A
- Style :
- Board to Cable/Wire
- Pitch :
- 4.191mm
- Length :
- 9.6mm
- Wire/Cable Gauge :
- 18 AWG
- Published :
- 2007
- Pitch - Mating :
- 0.165 4.20mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Insulation Diameter :
- 3.1 mm
- PCB Thickness :
- 1.778mm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Finish - Mating :
- Tin
- Current Rating (Amps) :
- 9A
- Material Flammability Rating :
- UL94 V-0
- Orientation :
- Vertical
- Feature :
- Board Lock, Glow Wire Compliant
- Number of Positions Loaded :
- All
- Flammability Rating :
- UL94 V-2
- Approval Agency :
- UL
- Housing Material :
- Polyamide
- Mounting Type :
- Through Hole
- Voltage - Rated :
- 600VAC
- Series :
- VAL-U-LOK
- Insulation Height :
- 0.504 12.80mm
- PCB Mounting Orientation :
- Vertical
- Width :
- 9.75mm
- Number of Positions :
- 4
- Sealable :
- No
- Contact Plating :
- Tin
- Housing Color :
- White
- Height :
- 12.8mm
- Connector Type :
- Header
- VDE Tested :
- No
- Mount :
- Through Hole
- Color :
- White
- Radiation Hardening :
- No
- Contact Retention :
- With
- Halogen Free :
- Halogen Free
- Operating Temperature :
- -40°C~105°C
- Row Spacing - Mating :
- 0.165 (4.20mm)
- Contact Shape :
- Square
- Length - Tail :
- 3.5052mm
- Number of Rows :
- 2
- PCB Mount Retention :
- With
- Insulation Color :
- White
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Contacts :
- 4
- Contact Type :
- Male Pin
- Max Operating Temperature :
- 221°C
- Min Operating Temperature :
- -40°C
- Fastening Type :
- Locking Ramp
- Factory Lead Time :
- 16 Weeks
- Circuit Application :
- Power
- Mating Retention :
- With
- Current Rating :
- 9A
- RoHS Status :
- RoHS Compliant
- Packaging :
- Tray
- Applications :
- General Purpose, Industrial, Lighting
- Termination :
- Solder
- Datasheets
- 2029059-4
VAL-U-LOK Series 2-Row Header Solder Brass Tray Through Hole Tin Polyamide (PA66), Nylon 6/6 4-Position Board to Cable/Wire 0.504 12.80mm Height
2029059-4 Overview
The product comes in a package of Header.Through Hole is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the VAL-U-LOK Series.Use it when the temperature is below 221°C.Temperatures below -40°C are required for this device to operate.The device may be used for the following applications: General Purpose, Industrial, Lighting.It is more powerful in many ways due to its Board Lock, Glow Wire Compliant feature.It is mounted by Through Hole.Its operating supply voltage is 600V.It operates at an operating temperature of -40°C~105°C.
2029059-4 Features
VAL-U-LOK series
2029059-4 Applications
There are a lot of TE Connectivity AMP Connectors
2029059-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
