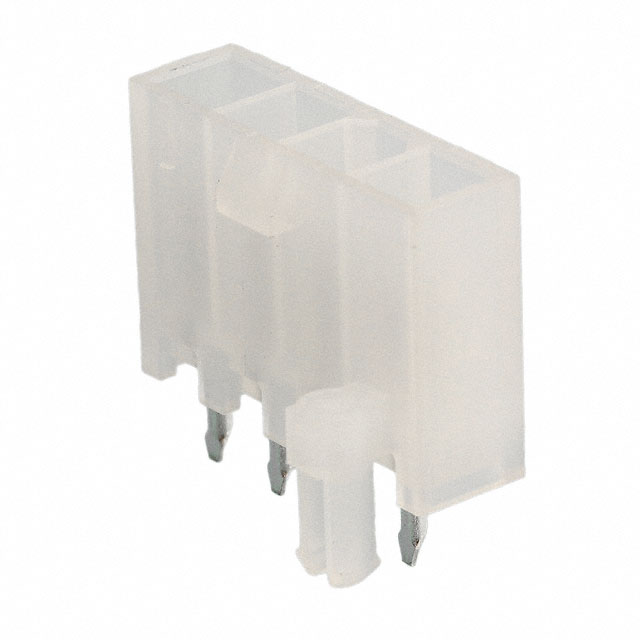

2029058-4
Or copy the link below:
- Mfr.Part #
- 2029058-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 4.2MM
- Stock
- 8,960
- In Stock ：
- 8,960
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Factory Lead Time :
- 16 Weeks
- Operating Temperature :
- -40°C~105°C
- Circuit Application :
- Power
- PCB Mounting Orientation :
- Vertical
- Contact Material :
- Brass Alloy
- Fastening Type :
- Locking Ramp
- Number of Ports :
- 1
- Min Operating Temperature :
- -40°C
- ELV :
- Compliant
- Depth :
- 12.49mm
- Applications :
- General Purpose, Industrial, Lighting
- Shrouding :
- Shrouded - 4 Wall
- Insulation Height :
- 0.504 12.80mm
- Insulation Color :
- Natural
- Number of Contacts :
- 4
- PCB Thickness :
- 70μm
- Termination :
- Solder
- Mounting Type :
- Through Hole
- Material Flammability Rating :
- UL94 V-2
- Contact Finish - Mating :
- Tin
- Orientation :
- Vertical
- Height :
- 12.8mm
- Pitch :
- 4.2mm
- Sealable :
- No
- Housing Color :
- Natural
- Feature :
- Board Lock
- Contact Finish Thickness - Post :
- 80.0μin 2.03μm
- Contact Type :
- Male Pin
- Color :
- Natural
- Number of Rows :
- 1
- Contact Plating :
- Tin
- Contact Current Rating :
- 9A
- Mount :
- Through Hole
- Insulation Diameter :
- 3.0988 mm
- Style :
- Board to Cable/Wire
- Housing Material :
- Nylon
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Radiation Hardening :
- No
- RoHS Status :
- RoHS Compliant
- Number of Terminations :
- 4
- Contact Shape :
- Square
- Length :
- 18.00098mm
- Number of Positions :
- 4
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Insulation Material :
- Polyamide (PA), Nylon
- Contact Gender :
- Male
- Max Voltage Rating (AC) :
- 600V
- Operating Supply Voltage :
- 600V
- Approval Agency :
- CSA
- Contact Length - Post :
- 0.138 3.50mm
- Wire Gauge (Min) :
- 16 AWG
- Current Rating :
- 9A
- Contact Finish - Post :
- Tin
- VDE Tested :
- No
- Plating Thickness :
- 80μm
- Wire Gauge (Max) :
- 26 AWG
- Number of Power Positions :
- 4
- Flammability Rating :
- UL94 V-2
- Voltage - Rated AC :
- 600V
- Pitch - Mating :
- 0.165 4.20mm
- Packaging :
- Bulk
- Max Operating Temperature :
- 221°C
- Number of Signal Positions :
- 0
- Width :
- 5.4102mm
- Published :
- 2008
- Contact Retention :
- Without
- Voltage - Rated :
- 600VAC
- Series :
- VAL-U-LOK
- Plating :
- Tin
- Contact Finish Thickness - Mating :
- 80.0μin 2.03μm
- Current Rating (Amps) :
- 9A
- Number of Positions Loaded :
- All
- Connector Type :
- Header
- Datasheets
- 2029058-4
VAL-U-LOK Series 1-Row Header Solder Brass Alloy Bulk Through Hole Tin Polyamide (PA), Nylon 4-Position Board to Cable/Wire 0.504 12.80mm Height
2029058-4 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the VAL-U-LOK Series, it can be found in this category.Temperatures below 221°C are best for using it.There's a minimum temperature of -40°C for this device.A variety of tasks can be managed via its 1 ports.A possible application of the device would be General Purpose, Industrial, Lighting.With its Board Lock feature, it is more powerful in many ways.In this case, Through Hole mounts the part.It has a termination of 4.The memory's operating supply voltage is 600V.The device is operating at -40°C~105°C Operating Temperature.
2029058-4 Features
4 basic kinds of terminations
VAL-U-LOK series
2029058-4 Applications
There are a lot of TE Connectivity AMP Connectors
2029058-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
