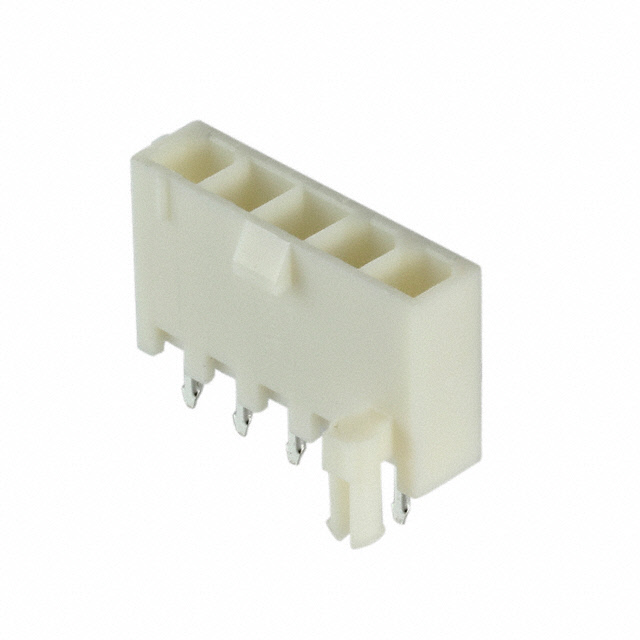

2029056-5
Or copy the link below:
- Mfr.Part #
- 2029056-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 4.2MM
- Stock
- 20,665
- In Stock ：
- 20,665
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Max Voltage Rating (AC) :
- 600V
- Color :
- Natural
- Height :
- 12.8mm
- Approval Agency :
- UL
- Current Rating :
- 9A
- RoHS Status :
- RoHS Compliant
- Contact Type :
- Male Pin
- PCB Thickness :
- 1.7526mm
- Operating Supply Voltage :
- 600V
- Contact Shape :
- Square
- Contact Plating :
- Tin
- Contact Finish Thickness - Mating :
- 80.0μin 2.03μm
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 16 Weeks
- Insulation Material :
- Polyamide (PA), Nylon
- Applications :
- General Purpose, Industrial, Lighting
- Contact Finish - Mating :
- Tin
- Contact Material :
- Brass Alloy
- Packaging :
- Bulk
- Length - Tail :
- 3.5052mm
- Current Rating (Amps) :
- 9A
- Mating Alignment :
- With
- Depth :
- 12.49mm
- PCB Mount Retention :
- With
- Contact Length - Post :
- 0.138 3.50mm
- Style :
- Board to Cable/Wire
- PCB Mounting Orientation :
- Vertical
- Max Operating Temperature :
- 130°C
- Flammability Rating :
- UL94 V-0
- Contact Current Rating :
- 9A
- Mount :
- Through Hole
- Operating Temperature :
- -40°C~105°C
- Width :
- 5.4102mm
- Voltage - Rated :
- 600VAC
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Insulation Color :
- Natural
- Number of Positions Loaded :
- All
- Housing Color :
- Natural
- Feature :
- Board Lock
- Sealable :
- No
- Contact Finish Thickness - Post :
- 80.0μin 2.03μm
- Circuit Application :
- Power
- Mounting Type :
- Through Hole
- Length :
- 22.2mm
- ELV :
- Compliant
- Connector Type :
- Header
- Housing Material :
- Nylon
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2008
- Fastening Type :
- Locking Ramp
- Number of Contacts :
- 5
- Orientation :
- Vertical
- Mating Retention :
- With
- Number of Rows :
- 1
- Number of Positions :
- 3
- Insulation Height :
- 0.504 12.80mm
- Series :
- VAL-U-LOK
- Pitch :
- 4.191mm
- Contact Finish - Post :
- Tin
- Shrouding :
- Shrouded - 4 Wall
- Min Operating Temperature :
- -55°C
- Termination :
- Solder
- Radiation Hardening :
- No
- Pitch - Mating :
- 0.165 4.20mm
- Datasheets
- 2029056-5
VAL-U-LOK Series 1-Row Header Solder Brass Alloy Bulk Through Hole Tin Polyamide (PA), Nylon 3-Position Board to Cable/Wire 0.504 12.80mm Height
2029056-5 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number VAL-U-LOK belongs to the VAL-U-LOK Series.Whenever the temperature is below 130°C, it's best.There is a minimum temperature requirement of [0°C] for this device.In addition to General Purpose, Industrial, Lighting, there are other possible applications for the device.In many ways, it is more powerful due to its Board Lock feature.There is a Through Hole mount on the part.A 600V voltage is used to supply power to this memory.This device operates at a temperature of -40°C~105°C.
2029056-5 Features
VAL-U-LOK series
2029056-5 Applications
There are a lot of TE Connectivity AMP Connectors
2029056-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
