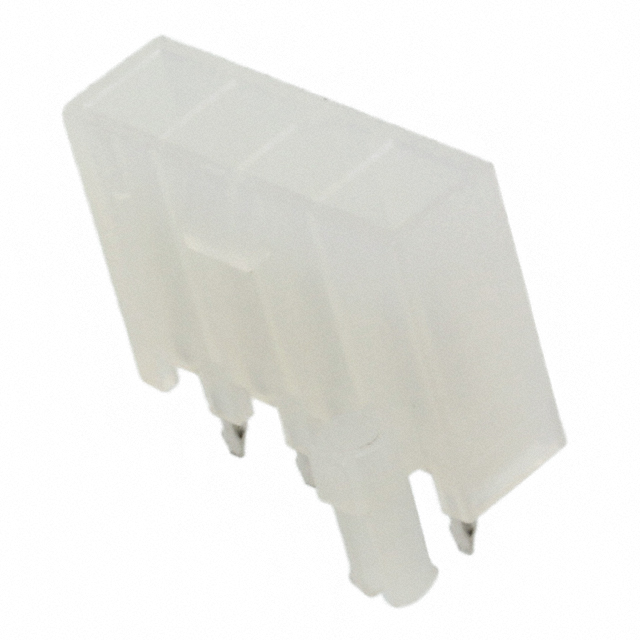

2029054-4
Or copy the link below:
- Mfr.Part #
- 2029054-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 4.2MM
- Stock
- 12,570
- In Stock ：
- 12,570
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Insulation Color :
- Natural
- Number of Contacts :
- 4
- Series :
- VAL-U-LOK
- Color :
- Natural
- Contact Finish Thickness - Post :
- 80.0μin 2.03μm
- RoHS Status :
- RoHS Compliant
- Operating Supply Voltage :
- 600V
- Number of Positions Loaded :
- All
- Number of Ports :
- 1
- Housing Material :
- Nylon
- Contact Material :
- Brass Alloy
- Mount :
- Through Hole
- Contact Finish - Mating :
- Tin
- Number of Rows :
- 1
- Number of Signal Positions :
- 0
- Insulation Diameter :
- 3.0988 mm
- Contact Finish Thickness - Mating :
- 80.0μin 2.03μm
- Contact Current Rating :
- 9A
- Contact Shape :
- Square
- Current Rating (Amps) :
- 9A
- Material Flammability Rating :
- UL94 V-2
- Flammability Rating :
- UL94 V-2
- Width :
- 5.4102mm
- Max Voltage Rating (AC) :
- 600V
- Orientation :
- Vertical
- Contact Plating :
- Tin
- Height :
- 12.8mm
- Contact Length - Post :
- 0.138 3.50mm
- Pitch :
- 4.2mm
- Contact Finish - Post :
- Tin
- Approval Agency :
- CSA
- Number of Power Positions :
- 4
- Min Operating Temperature :
- -40°C
- PCB Thickness :
- 70μm
- Number of Terminations :
- 4
- Current Rating :
- 9A
- Mounting Type :
- Through Hole
- Applications :
- General Purpose, Industrial, Lighting
- Contact Type :
- Male Pin
- Operating Temperature :
- -40°C~105°C
- Number of Positions :
- 4
- Published :
- 2008
- Feature :
- Board Lock
- Insulation Height :
- 0.504 12.80mm
- Length :
- 18.00098mm
- Packaging :
- Bulk
- Pitch - Mating :
- 0.165 4.20mm
- Insulation Material :
- Polyamide (PA), Nylon
- Depth :
- 12.49mm
- Voltage - Rated :
- 600VAC
- VDE Tested :
- No
- Lead Free :
- Lead Free
- Shrouding :
- Shrouded - 4 Wall
- Plating :
- Tin
- Fastening Type :
- Locking Ramp
- Sealable :
- No
- Circuit Application :
- Power
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ELV :
- Compliant
- Plating Thickness :
- 80μm
- Contact Retention :
- Without
- Housing Color :
- Natural
- Radiation Hardening :
- No
- Max Operating Temperature :
- 221°C
- PCB Mounting Orientation :
- Vertical
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Connector Type :
- Header
- Style :
- Board to Cable/Wire
- Factory Lead Time :
- 25 Weeks
- Termination :
- Solder
- Datasheets
- 2029054-4
VAL-U-LOK Series 1-Row Header Solder Brass Alloy Bulk Through Hole Tin Polyamide (PA), Nylon 4-Position Board to Cable/Wire 0.504 12.80mm Height
2029054-4 Overview
It comes in a Header package.Through Hole is the mounting type of the device.We pack the product in a Bulk case.This is from the VAL-U-LOK Series.The ideal temperature for using it is below 221°C.There must be a minimum temperature of -40°C.With 1 ports, you can manage all kinds of stuff.This device can be used for General Purpose, Industrial, Lighting.A number of advantages can be derived from its Board Lock feature.This part is mounted by Through Hole. The chip has terminations of 4.600V is the operating voltage of this memory.-40°C~105°C Operating Temperature is the default.
2029054-4 Features
4 basic kinds of terminations
VAL-U-LOK series
2029054-4 Applications
There are a lot of TE Connectivity AMP Connectors
2029054-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
