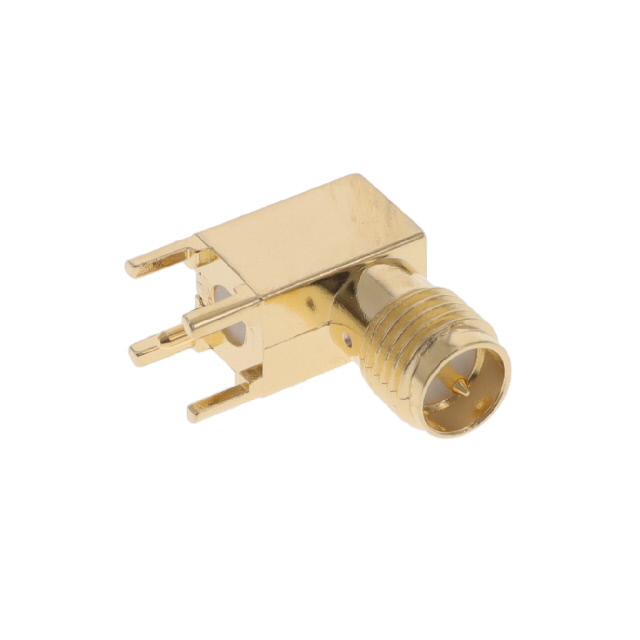

2016504-1
Or copy the link below:
- Mfr.Part #
- 2016504-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- SMA RIGHT ANGLE, PCB, RP
- Stock
- 1,212
- In Stock ：
- 1,212
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Coaxial Connector (RF) Assemblies
- Circuit Application :
- Signal
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Sealable :
- No
- Connector Type :
- SMA
- MIL Conformance :
- No
- Min Operating Temperature :
- -65°C
- RoHS Status :
- Non-RoHS Compliant
- Mounting Type :
- BOARD
- Termination :
- Solder
- Insulation Material :
- POLYTETRAFLUORO ETHYLENE
- IEC Conformance :
- No
- Body Plating :
- Gold
- Max Operating Temperature :
- 105°C
- Body Material :
- Zinc
- PCB Mounting Orientation :
- RIGHT ANGLE
- Frequency :
- 6GHz
- Orientation :
- RIGHT ANGLE
- Number of Contacts :
- 1
- Dielectric Material :
- PTFE
- ECCN Code :
- EAR99
- Reach Compliance Code :
- Compliant
- Impedance :
- 50Ohm
- Contact Material :
- Brass
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Factory Lead Time :
- 9 Weeks
- Coupling Type :
- Threaded
- Published :
- 2017
- DIN Conformance :
- No
- Option :
- GENERAL PURPOSE
- Panel Mount :
- No
- Element Configuration :
- Single
- Contact Gender :
- Male
- Length - Tail :
- 3.0988mm
- Filter Feature :
- No
- Datasheets
- 2016504-1
SMA 50Ohm PTFE
2016504-1 Overview
The connector type SMA refers to the connector type.The device's mounting type is BOARD.It's best to use it when the temperature is below 105°C.This device must operate at a minimum temperature of -65°C.Its frequency is 6GHz.
2016504-1 Features
2016504-1 Applications
There are a lot of TE Connectivity AMP Connectors
2016504-1 Coaxial Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
