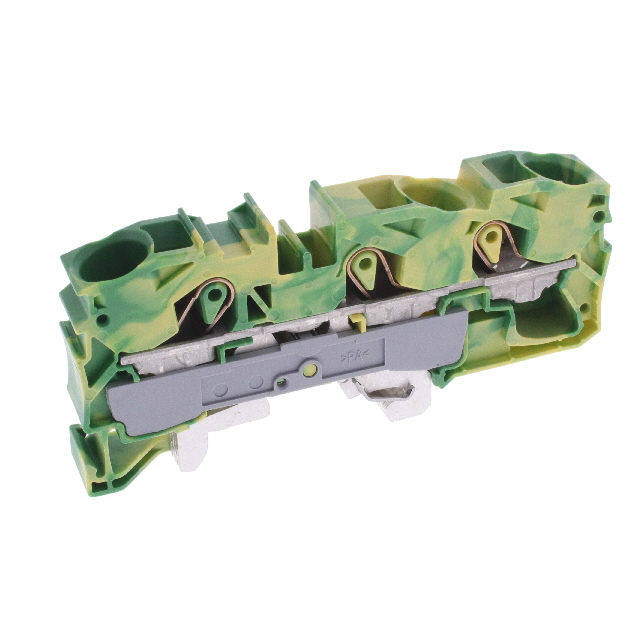

2016-1307

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Configuration :

Terre

Termination Method :

Push In

ECCN Code :

EAR99

AWG max. :

4

AWG (min.) :

20

Wire Cross Section :

25 mm2

Number of Levels :

1

Package :

Bulk

Reach Compliance Code :

Compliant

Wire Size :

20 → 4 AWG

Number of Circuits :

1

Connectable conductor cross section fine-strand with cable end sleeve :

2.5 - 16

Voltage - IEC :

-

Cross section (inflexible) (min.) :

0.50mm²

Manufacturer part # :

2016-1307

Connection :

-

Features :

-

Type :

Grounding Block

Termination Style :

Push In, Spring

Voltage Rating :

800 V

Fuse Type :

-

Pins per row :

3

Material Flammability Rating :

-

Terminal - Width :

12.0mm

Min. stripping length :

18mm

Current Rating :

76A

Number of Ways :

3

Stripping Length :

18mm ~ 20mm

Number of Decks :

1

Number of Rows :

1

Nominal current :

76A

Color :

Green-Yellow

Connectable conductor cross section solid-core :

2.5 - 16

Weight :

0.05

Number of Positions :

3

Voltage - UL :

-

Base Product Number :

2016-130

Content :

1pc(s)

HTS Code :

8536.69.40.40

Nominal current - rounded value :

76A

Cross section (flexible) (min.) :

0.50mm²

Disconnect Type :

-

No. of rows :

1

Mounting Type :

DIN Rail

Height :

91.8

Wire Gauge or Range - mm² :

6-16mm²

Product Status :

Active

Length :

92

Wire Gauge or Range - AWG :

6-14 AWG

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section fine-strand without cable end sleeve :

0.5 - 25

RoHS :

yes

Manufacturer :

Wago

Terminal and Terminal Block Type :

MODULAR TERMINAL BLOCK

Nominal current (details) :

76A

Series :

2016

Cross section (flexible) (max.) :

24mm²

Width :

12mm

Depth :

36.9

Cross section (inflexible) (max.) :

16mm²

Connectable conductor cross section multi-wired :

0.5 - 16

Clamp width :

12mm

Stripping length (max.) :

20mm

Wire Gauge :

4 AWG

Material - Insulation :

Polyamide (PA66), Nylon 6/6
