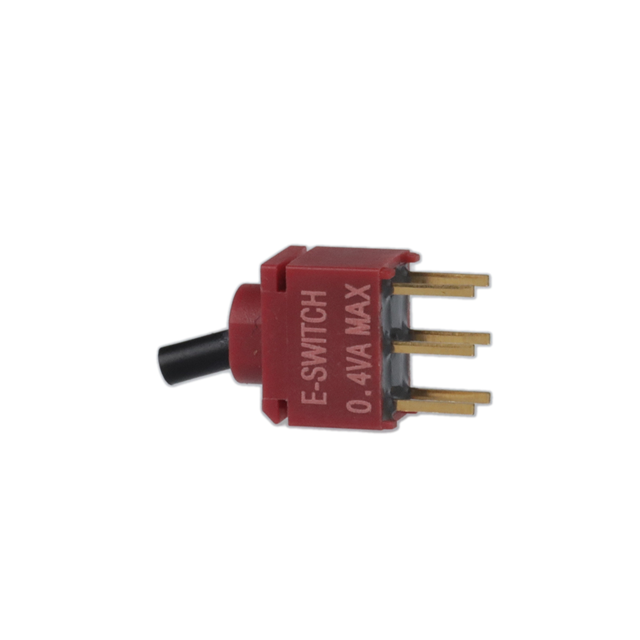

200UDP1T1A1M2RE
Or copy the link below:
- Mfr.Part #
- 200UDP1T1A1M2RE
- Manufacturer
- E-Switch
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TOGGLE DPDT 0.4VA 20V
- Stock
- 1,259
- In Stock ：
- 1,259
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- E-Switch
- Product Category :
- Center Contact Plating :
- Gold
- Switch Function :
- On-On
- Body Height :
- 5.7912mm
- Dielectric Withstanding Voltage :
- 500VDC V
- Mount :
- Through Hole
- Voltage - Rated AC :
- 20V
- Feature :
- Epoxy Sealed Terminals
- Illumination :
- Non-Illuminated
- Current Rating (Amps) :
- 0.4VA AC/DC
- Electrical Life :
- 40,000 Cycles
- Contact Resistance :
- 0.1mOhm
- Termination :
- PC Pin
- Contact (DC) Max Power Rating R Load :
- 0.4VA@20VDC
- Series :
- 200u
- ECCN Code :
- EAR99
- Mounting Type :
- Through Hole
- End Contact Material :
- COPPER ALLOY
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Factory Lead Time :
- 9 Weeks
- RoHS Status :
- ROHS3 Compliant
- Center Contact Material :
- COPPER ALLOY
- Body Breadth :
- 4.4958 mm
- Ratings :
- Dust Tight, IP67, Waterproof
- Switch Type :
- TOGGLE SWITCH
- Packaging :
- Bulk
- End Contact Plating :
- Gold
- Bushing Length :
- 0.063 inch
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Actuator Type :
- Standard Round
- Circuit :
- DPDT
- Operating Temperature :
- -30°C~85°C
- Voltage - Rated DC :
- 20V
- Body Length or Diameter :
- 7.0104mm
- Bushing Thread :
- Unthreaded
- Insulation Resistance :
- 500000000Ohm
- Termination Style :
- PC Pin
- PCB Hole Count :
- 6
- Actuator Length :
- 3.80mm
- HTS Code :
- 8536.50.90.65
- Published :
- 2008
- Datasheets
- 200UDP1T1A1M2RE
