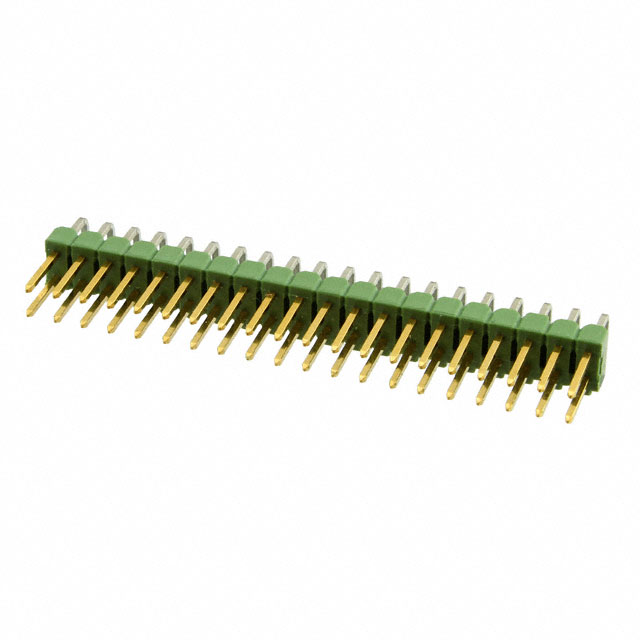

2-826634-0
Or copy the link below:
- Mfr.Part #
- 2-826634-0
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 40POS 2.54MM
- Stock
- 1,761
- In Stock ：
- 1,761
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Number of Rows :
- 2
- Mount :
- Through Hole
- Pitch - Mating :
- 0.100 2.54mm
- REACH SVHC :
- No SVHC
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Series :
- AMPMODU Mod II
- Insulation Height :
- 0.219 5.56mm
- Mating Post Length :
- 6.7mm
- Housing Material :
- Thermoplastic
- Factory Lead Time :
- 23 Weeks
- Mounting Type :
- Through Hole, Right Angle
- Lead Pitch :
- 2.54mm
- Published :
- 1997
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Finish - Mating :
- Gold
- Depth :
- 13.34mm
- Pbfree Code :
- yes
- JESD-609 Code :
- e3
- Contact Plating :
- Gold, Tin
- Contact Shape :
- Square
- IEC Conformance :
- No
- PCB Mounting Orientation :
- RIGHT ANGLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- MIL Conformance :
- No
- Style :
- Board to Board or Cable
- Fastening Type :
- Push-Pull
- Mixed Contacts :
- No
- Gender :
- Male
- Number of Positions :
- 40
- Flammability Rating :
- UL94 V-0
- Shrouding :
- Unshrouded
- Contact Type :
- Male Pin
- Contact Finish - Post :
- Tin
- Contact Current Rating :
- 5A
- Contact Length - Mating :
- 0.264 6.70mm
- ELV :
- Compliant
- Number of Positions Loaded :
- All
- Plating Thickness :
- 800 nm
- Operating Temperature :
- -65°C~105°C
- Orientation :
- RIGHT ANGLE
- Contact Length - Post :
- 0.126 3.20mm
- Length :
- 50.8mm
- Option :
- GENERAL PURPOSE
- Contact Material :
- Brass
- Contact Finish Thickness - Mating :
- 3.90μin 0.099μm
- Packaging :
- Bulk
- DIN Conformance :
- No
- Connector Type :
- Header, Breakaway
- RoHS Status :
- RoHS Compliant
- UL Flammability Code :
- 94V-0
- High Temperature Housing :
- No
- Lead Length :
- 3.19786mm
- Termination :
- Solder
- Insulation Color :
- Green
- Filter Feature :
- No
- Current Rating :
- 3A
- Datasheets
- 2-826634-0
AMPMODU Mod II Series 2-Row Header, Breakaway Solder Brass Bulk Through Hole, Right Angle Gold Polybutylene Terephthalate (PBT) 40-Position Board to Board or Cable 0.219 5.56mm Height
2-826634-0 Overview
It comes in Header, Breakaway packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the AMPMODU Mod II Series of products.The part is mounted by Through Hole.The device runs in -65°C~105°C Operating Temperature.
2-826634-0 Features
AMPMODU Mod II series
2-826634-0 Applications
There are a lot of TE Connectivity AMP Connectors
2-826634-0 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
