2-825433-2
Or copy the link below:
- Mfr.Part #
- 2-825433-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 22POS 2.54MM
- Stock
- 1,692
- In Stock ：
- 1,692
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Mounting Type :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 5A
- Mount :
- Through Hole
- PCB Mounting Orientation :
- Vertical
- Number of Conductors :
- ONE
- Mixed Contacts :
- No
- Style :
- Board to Board or Cable
- Contact Length - Post :
- 0.126 3.20mm
- Contact Finish - Mating :
- Gold
- Number of Positions :
- 22
- Shrouding :
- Unshrouded
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Contact Finish Thickness - Mating :
- Flash
- Contact Type :
- Male Pin
- Published :
- 2009
- RoHS Status :
- RoHS Compliant
- IEC Conformance :
- No
- DIN Conformance :
- No
- Number Of PCB Rows :
- 1
- UL Flammability Code :
- 94V-0
- Pbfree Code :
- yes
- Series :
- AMPMODU Mod II
- Contact Length - Mating :
- 0.264 6.70mm
- Number of Rows :
- 1
- Insulation Resistance :
- 5000000000Ohm
- PCB Contact Pattern :
- RECTANGULAR
- Operating Temperature :
- -65°C~105°C
- Fastening Type :
- Push-Pull
- Dielectric Withstanding Voltage :
- 750VAC V
- Contact Finish Thickness - Post :
- 98.4μin 2.50μm
- Contact Material :
- Brass
- Overall Contact Length :
- 0.500 12.70mm
- HTS Code :
- 8536.69.40.40
- Factory Lead Time :
- 23 Weeks
- ECCN Code :
- EAR99
- Keyed :
- No
- Row Spacing :
- 2.54 mm
- Approval Agency :
- CSA
- Connector Type :
- Header, Breakaway
- Flammability Rating :
- UL94 V-0
- Filter Feature :
- No
- Option :
- GENERAL PURPOSE
- Contact Finish - Post :
- Tin
- JESD-609 Code :
- e3
- Depth :
- 3.69mm
- Packaging :
- Bulk
- Contact Shape :
- Square
- Gender :
- Male
- Contact Current Rating :
- 5A
- Plating Thickness :
- 2.5μm
- Termination :
- Solder
- ELV :
- Compliant
- Length :
- 55.88mm
- Lead Length :
- 3.19786mm
- Reliability :
- COMMERCIAL
- Insulation Material :
- Polybutylene Terephthalate (PBT)
- Contact Plating :
- Gold, Tin
- Material Flammability Rating :
- UL94 V-0
- Housing Material :
- PBT
- Mating Post Length :
- 6.7mm
- Insulation Height :
- 0.110 2.79mm
- Number of Positions Loaded :
- All
- Insulation Color :
- Green
- Pitch - Mating :
- 0.100 2.54mm
- MIL Conformance :
- No
- Datasheets
- 2-825433-2

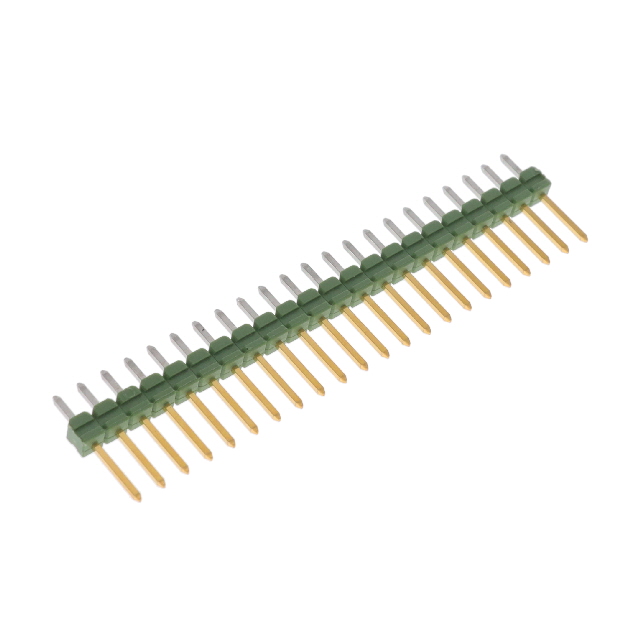

AMPMODU Mod II Series 1-Row Header, Breakaway Solder Brass Bulk Through Hole Gold Polybutylene Terephthalate (PBT) 22-Position Board to Board or Cable 0.110 2.79mm Height
2-825433-2 Overview
Packaging is Header, Breakaway.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the AMPMODU Mod II Series, it can be found in this category.In this case, Through Hole mounts the part.The device is operating at -65°C~105°C Operating Temperature.
2-825433-2 Features
AMPMODU Mod II series
2-825433-2 Applications
There are a lot of TE Connectivity AMP Connectors
2-825433-2 Rectangular Connectors applications.
