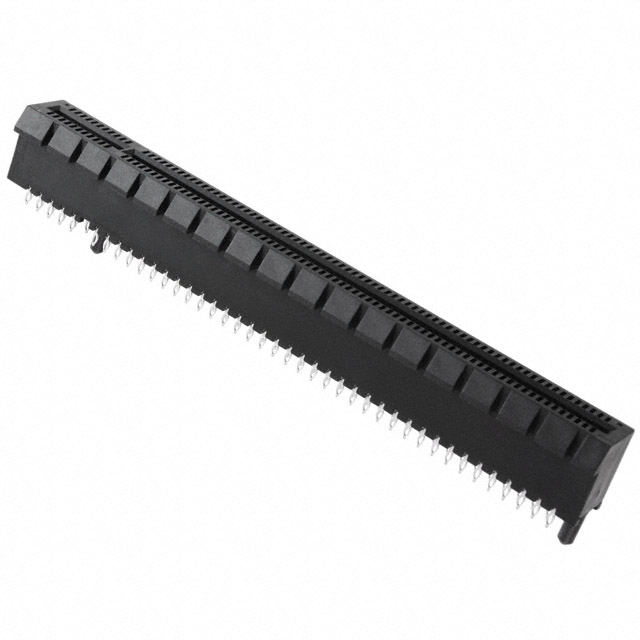

1871058-4
Or copy the link below:
- Mfr.Part #
- 1871058-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PCI EXP FMALE 164POS 0.039
- Stock
- 935
- In Stock ：
- 935
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Factory Lead Time :
- 16 Weeks
- Plating Thickness :
- 500 nm
- Body Breadth :
- 0.348 inch
- PCB Contact Pattern :
- STAGGERED
- Packaging :
- Bulk
- Depth :
- 7.5mm
- Lead Pitch :
- 1mm
- Mount :
- Press Fit, Through Hole
- Circuit Application :
- Signal
- Contact Plating :
- Gold, Tin
- Operating Temperature :
- -55°C~85°C
- Mounting Type :
- Through Hole
- Height :
- 10.9982mm
- Insulation Resistance :
- 1000000000Ohm
- Reliability :
- COMMERCIAL
- Operating Supply Voltage :
- 50V
- Gender :
- FEMALE
- Termination Post Length :
- 2mm
- Length :
- 89.0016mm
- Lead Free :
- Not Applicable
- Color :
- Black
- Weight :
- 2.863g
- Body/Shell Style :
- Receptacle
- HTS Code :
- 8536.69.40.40
- Card Thickness :
- 0.062 1.57mm
- Number of Rows :
- 2
- Contact Material :
- COPPER ALLOY
- Reference Standard :
- CSA
- Orientation :
- Vertical
- Rated Current (Signal) :
- 1A
- Number Of PCB Rows :
- 4
- Durability :
- 100 Cycles
- Total Number of Contacts :
- 164
- Connector Type :
- CARD EDGE CONNECTOR
- Width :
- 8.88mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 164
- Contact Style :
- BELLOWED TYPE
- Read Out :
- Dual
- Number of Conductors :
- ONE
- Length - Tail :
- 2mm
- Radiation Hardening :
- No
- Material - Insulation :
- Thermoplastic
- Termination :
- Press-Fit
- RoHS Status :
- RoHS Compliant
- PCB Thickness :
- 1.5748mm
- Voltage - Rated :
- 50V
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Published :
- 2006
- Feature :
- Board Guide, Locking Ramp
- Pbfree Code :
- yes
- Dielectric Withstanding Voltage :
- 500VAC V
- ELV :
- Compliant
- ECCN Code :
- EAR99
- Max Voltage Rating (AC) :
- 50V
- Lead Length :
- 2mm
- Withdrawl Force-Min :
- .139 N
- Pitch :
- 0.039 1.00mm
- Contact Resistance :
- 30mOhm
- Card Type :
- PCI Express™
- Contact Pattern :
- RECTANGULAR
- Current Rating :
- 1.1A
- Contact Finish :
- Gold-Palladium
- Datasheets
- 1871058-4
