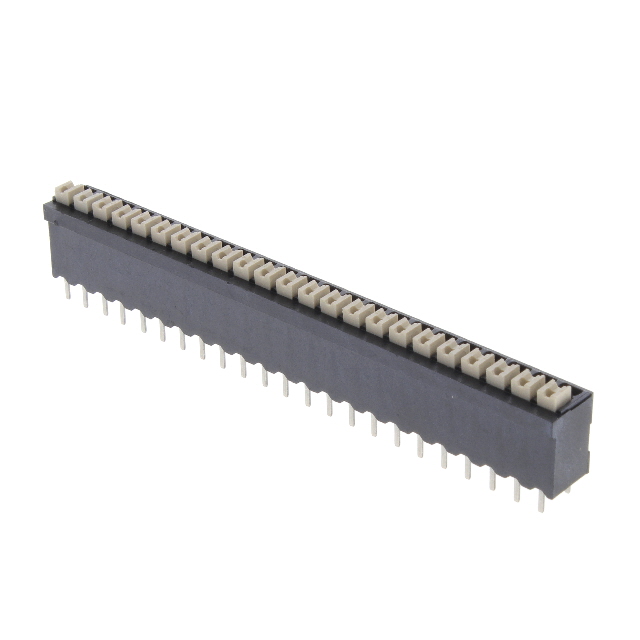

1871000000
Or copy the link below:
- Mfr.Part #
- 1871000000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLK 23P TOP ENT 3.81MM PCB
- Stock
- 60
- In Stock ：
- 60
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Wire to Board
- Packaging :
- Tube
- HTS Code :
- 8536.69.40.40
- Wire Termination :
- Screwless - Push Button Clamp
- Pitch :
- 0.150 3.81mm
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Radiation Hardening :
- No
- Wire Gauge (Min) :
- 16 AWG
- Approval Agency :
- CSA, cURus
- Mating Orientation :
- Vertical with Board
- Current :
- 12A
- Contact Material - Plating :
- Copper Alloy - Tin Plated
- Terminal and Terminal Block Type :
- MODULAR TERMINAL BLOCK
- Fastening Method :
- Push-On
- Number of Levels :
- 1
- Additional Feature :
- GLASS FILLED LCP, 94V-0
- Wire Gauge (Max) :
- 24 AWG
- Wire Gauge :
- 16-24 AWG
- Contact Plating :
- Tin
- Orientation :
- Straight
- Termination :
- Screwless
- Current Rating :
- 10A
- Hole Diameter :
- 1.1 mm
- Series :
- Omnimate LSF-SMT
- Number of Decks :
- 1
- Operating Temperature :
- -50°C~240°C
- Number of Ways :
- 23
- Number of Rows :
- 1
- Color :
- Black
- Number of Contacts :
- 23
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- ECCN Code :
- EAR99
- RoHS Status :
- RoHS Compliant
- Stripping Length :
- 8mm
- Voltage - Rated :
- 300V
- Factory Lead Time :
- 12 Weeks
- Safety Approval :
- UL; VDE; CSA
- Datasheets
- 1871000000
0.150 3.81mm Black Tube Liquid Crystal Polymer (LCP), Glass Filled Through Hole Vertical with Board Screwless - Push Button Clamp 1 Levels 16-24 AWG Omnimate LSF-SMT
1871000000 Overview
Through Hole indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the Omnimate LSF-SMT Series.Furthermore, there are other features such as GLASS FILLED LCP, 94V-0, to name a few.By Through Hole, the part is mounted.Operating temperature is set to -50°C~240°C.
1871000000 Features
Omnimate LSF-SMT series
1871000000 Applications
There are a lot of Weidmüller
1871000000 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
