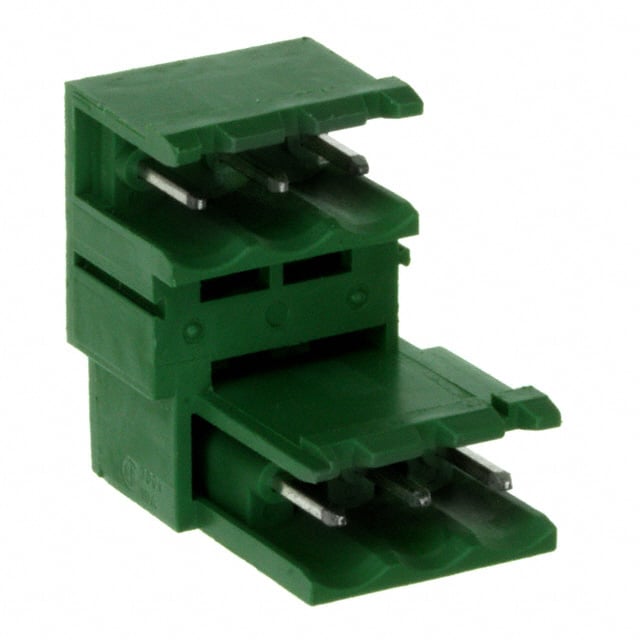

1763087
Or copy the link below:
- Mfr.Part #
- 1763087
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 6POS VERT 5.08MM
- Stock
- 144
- In Stock ：
- 144
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Contact Plating :
- Tin
- Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 7 Weeks
- Number of Poles :
- 3
- Approval Agency :
- CSA, UL
- Voltage - IEC :
- 400V
- Voltage :
- 300V
- ECCN Code :
- EAR99
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Height :
- 23.7mm
- Number of Positions :
- 6
- Termination Style :
- Solder
- Depth :
- 23.7mm
- Lead Free :
- Lead Free
- Type :
- Header, Male Pins, Shrouded (2 Side)
- RoHS Status :
- RoHS Compliant
- Contact Tail Length :
- 0.138 3.50mm
- Material Flammability Rating :
- UL94 V-0
- Additional Feature :
- PBT, 94V-0
- Current :
- 12A
- Published :
- 2010
- Pitch :
- 0.200 5.08mm
- Connector Type :
- PLUG
- Insulation Height :
- 0.870 22.10mm
- Mounting Type :
- Through Hole
- Weight :
- 162.000005g
- Voltage - Rated :
- 250V
- Current Rating :
- 10A
- Number of Ways :
- 3
- Mount :
- Through Hole
- Packaging :
- Bulk
- Positions Per Level :
- 3
- Number of Decks :
- 1
- Number of Rows :
- 1
- Max Current Rating :
- 10A
- Number of Levels :
- 2
- Orientation :
- Straight
- Series :
- COMBICON MDSTBV
- Width :
- 25.6mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Safety Approval :
- UL
- Header Orientation :
- Vertical
- Pbfree Code :
- yes
- Length :
- 17.78mm
- Color :
- Green
- Datasheets
- 1763087
Bulk 0.200 5.08mm Green 2 Levels Through Hole Header, Male Pins, Shrouded (2 Side) COMBICON MDSTBV Polybutylene Terephthalate (PBT)
1763087 Overview
Packaging is in the form of Plug.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON MDSTBV Series.Other features include PBT, 94V-0, to name just a few.There is a mounting hole at Through Hole.There are many benefits that this part shares with other Header, Male Pins, Shrouded (2 Side) products as well.
1763087 Features
COMBICON MDSTBV series
1763087 Applications
There are a lot of Phoenix Contact
1763087 Terminal Blocks applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
