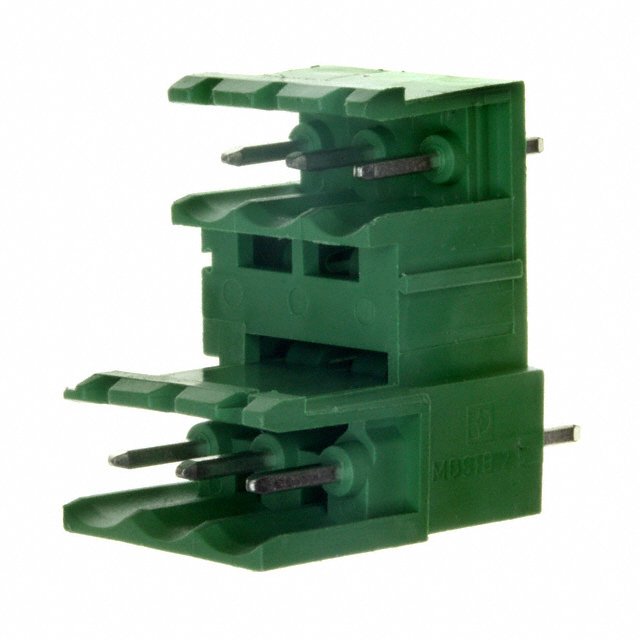

1763045
Or copy the link below:
- Mfr.Part #
- 1763045
- Manufacturer
- Phoenix Contact
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 6POS VERT 5MM
- Stock
- 50
- In Stock ：
- 50
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Phoenix Contact
- Product Category :
- Headers, Plugs and Sockets
- Reach Compliance Code :
- Unknown
- Series :
- COMBICON MDSTBV
- Material Flammability Rating :
- UL94 V-0
- Length :
- 17.5mm
- RoHS Status :
- RoHS Compliant
- ECCN Code :
- EAR99
- Width :
- 26mm
- Pitch :
- 0.197 5.00mm
- Housing Material :
- Polybutylene Terephthalate (PBT)
- Termination Style :
- Solder
- Max Current Rating :
- 10A
- Mounting Type :
- Through Hole
- Color :
- Green
- Number of Decks :
- 1
- Voltage :
- 300V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- PLUG
- Header Orientation :
- Vertical
- Current Rating :
- 10A
- Packaging :
- Bulk
- Contact Tail Length :
- 0.154 3.90mm
- Current :
- 12A
- Positions Per Level :
- 3
- Insulation Height :
- 0.870 22.10mm
- Number of Positions Per Level :
- 3
- Number of Rows :
- 1
- Height :
- 23.7mm
- Additional Feature :
- PBT, 94V-0
- Contact Plating :
- Tin
- Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- Voltage - IEC :
- 400V
- Factory Lead Time :
- 4 Weeks
- Depth :
- 23.7mm
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Number of Ways :
- 3
- Orientation :
- Straight
- Voltage - Rated :
- 250V
- Published :
- 2011
- Lead Free :
- Lead Free
- Number of Levels :
- 2
- Safety Approval :
- UL
- Weight :
- 1.50003kg
- Mount :
- Through Hole
- Number of Positions :
- 6
- Datasheets
- 1763045
Bulk 0.197 5.00mm Green 2 Levels Through Hole Header, Male Pins, Shrouded (2 Side) COMBICON MDSTBV Polybutylene Terephthalate (PBT)
1763045 Overview
Currently, it is packaged in Plug.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the COMBICON MDSTBV Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as PBT, 94V-0, to name a few.Through Hole represents the mounting point for the part.As with other Header, Male Pins, Shrouded (2 Side) products, this part also offers a wide range of benefits.
1763045 Features
COMBICON MDSTBV series
1763045 Applications
There are a lot of Phoenix Contact
1763045 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
