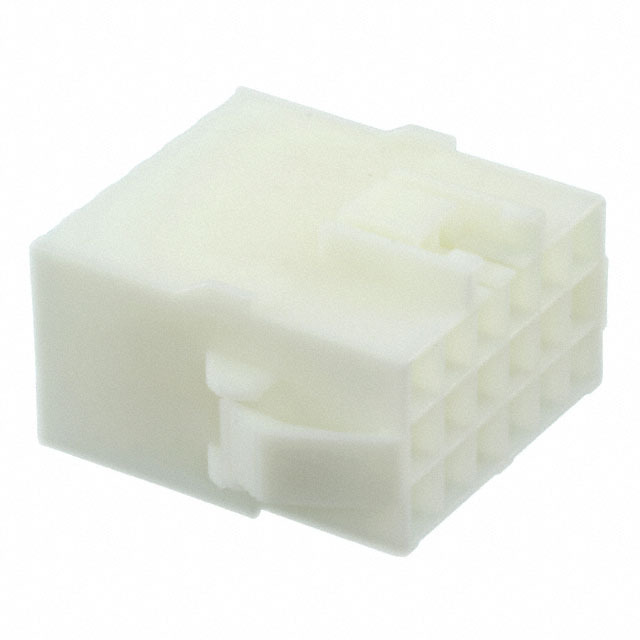

176301-1
Or copy the link below:
- Mfr.Part #
- 176301-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 18POS 3.96MM
- Stock
- 480
- In Stock ：
- 480
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Rectangular Connector Housings
- Min Operating Temperature :
- -22°C
- Housing Material :
- Nylon
- Row Spacing :
- 0.181 (4.60mm)
- Packaging :
- Bulk
- Contact Current Rating :
- 7A
- Current Rating :
- 12A
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 18
- Number of Contacts :
- 18
- Contact Type :
- Male Pin
- Mount :
- Panel
- Orientation :
- Straight
- Insulation Resistance :
- 1GOhm
- Factory Lead Time :
- 9 Weeks
- Max Voltage Rating (AC) :
- 600V
- Connector Type :
- Receptacle
- Series :
- Universal Power
- Fastening Type :
- Locking Ramp
- Length :
- 28.956mm
- Radiation Hardening :
- No
- Termination :
- Crimp
- Flammability Rating :
- UL94 V-0
- Operating Supply Voltage :
- 300V
- Contact Termination :
- Crimp
- Gender :
- FEMALE
- Sealable :
- No
- Color :
- Natural
- Contact Retention :
- Without
- Pitch :
- 0.156 3.96mm
- Max Operating Temperature :
- 221°C
- Published :
- 1997
- Height :
- 17.6mm
- Lead Free :
- Not Applicable
- Note :
- Contacts Not Included
- Voltage - Rated :
- 600V
- Housing Color :
- Natural
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- ELV :
- Compliant
- Mounting Type :
- Panel Mount, Snap-In
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Depth :
- 29mm
- Number of Rows :
- 3
- Datasheets
- 176301-1
3 Rows Receptacle Bulk Natural 18 Positions Panel Mount, Snap-In Male Pin Crimp Universal Power Nylon
176301-1 Overview
The product comes in a package of Receptacle.Panel Mount, Snap-In is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the Universal Power Series.It is mounted by Panel.Its operating supply voltage is 300V.
176301-1 Features
Universal Power series
176301-1 Applications
There are a lot of TE Connectivity AMP Connectors
176301-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
