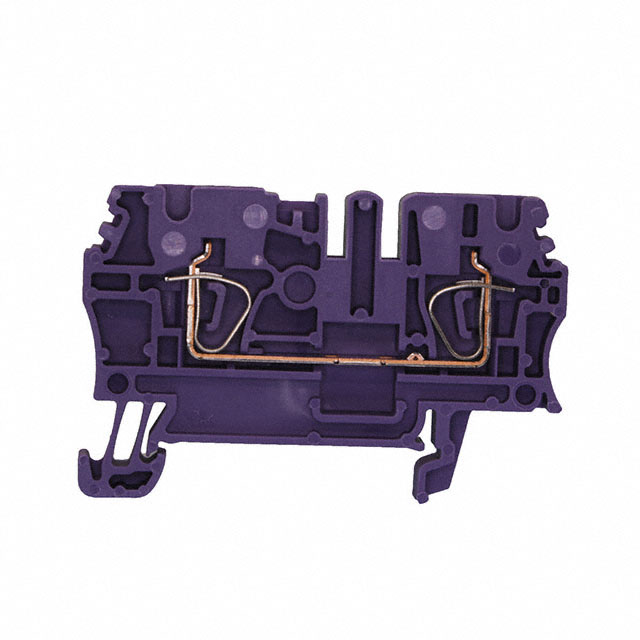

1683290000

Manufacturer :

Weidmuller

Product Category :

Din Rail, Channel

Flammability Rating :

UL94 V-0

Radiation Hardening :

No

Voltage - IEC :

800V

Color :

Violet

Number of Positions :

2

Type :

Feed Through

Additional Feature :

Polyamide

Current - IEC :

24A

Published :

2005

Number of Decks :

1

Fastening Method :

Screw

Safety Approval :

UL; VDE; CSA

Wire Gauge or Range - AWG :

12-30 AWG

Series :

Z

Housing Material :

Nylon

Factory Lead Time :

6 Weeks

Number of Rows :

2

Material Flammability Rating :

UL94 V-0

Length :

59.5mm

Stripping Length :

10mm

Termination Style :

Push In, Spring

Wire Gauge (Min) :

12 AWG

ECCN Code :

EAR99

Voltage :

600V

Number of Levels :

1

Moisture Sensitivity Level (MSL) :

Not Applicable

Width :

5.1mm

Lead Free :

Lead Free

Wire Gauge or Range - mm² :

0.5-4mm2

Orientation :

Straight

Wire Gauge (Max) :

30 AWG

Current :

25A

Height :

39.5mm

RoHS Status :

RoHS Compliant

HTS Code :

8536.69.40.40

Material - Insulation :

Thermoplastic, Wemid

Pbfree Code :

yes
